Engine Mount LH: Installation

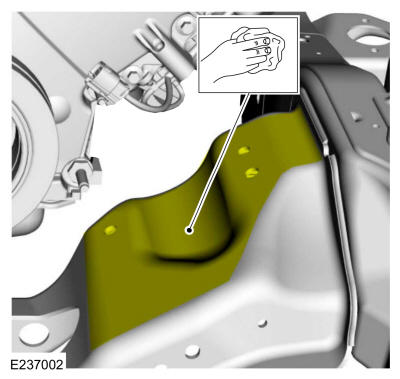

- Clean the LH engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
-
NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount may occur.NOTE: Clean the engine mount bracket-to-cylinder block surfaces of any dirt or foreign material prior to installation.

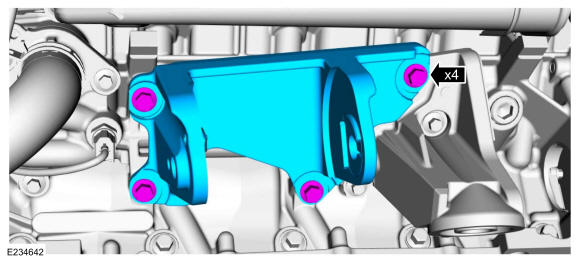

If removed, install the LH engine support insulator bracket and the new bolts.
Torque: Stage 1: 22 lb.ft (30 Nm) | Stage 2: 60 deg.
- Install the LH engine support insulator.

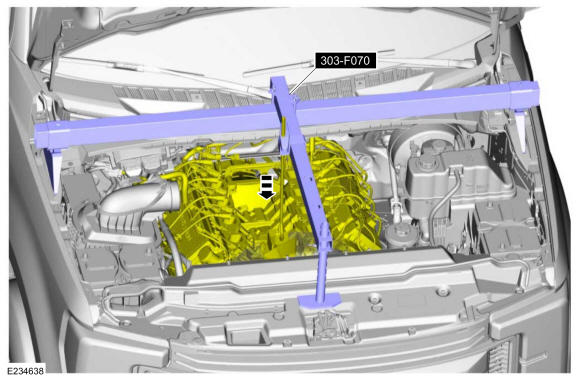

- Using the engine support bar, lower the engine. Install Special Service Tool: 303-F070 Support Bar, Engine.

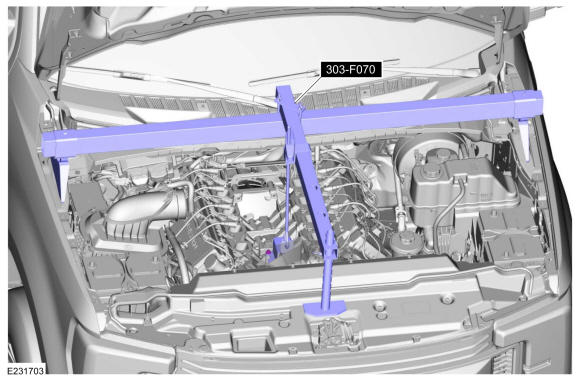

- Remove Special Service Tool: 303-F070 Support Bar, Engine.
-
NOTE: Do not tighten the fasteners at this time.
Install the new LH mount through bolt.
-
NOTE: Do not tighten the fasteners at this time.
Install the new RH mount through bolt.
-
NOTE: Only use hand tools when tightening the engine mount bolts or damage to the engine mount may occur.
Install the new LH engine support insulator bracket nuts.
Torque: 148 lb.ft (200 Nm)
-
NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount may occur.
Tighten the LH engine mount through bolt.
Torque: 258 lb.ft (350 Nm)
-
NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount may occur.
Tighten the RH engine mount through bolt.
Torque: 258 lb.ft (350 Nm)

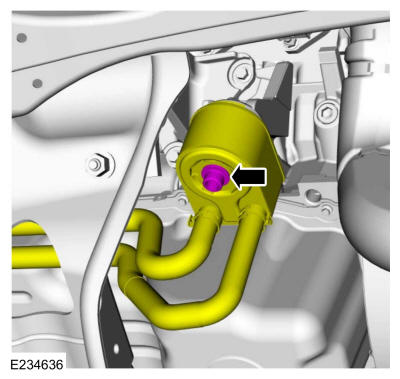

- Position the engine oil cooler and install the retainer.
Torque: 43 lb.ft (58 Nm)
-

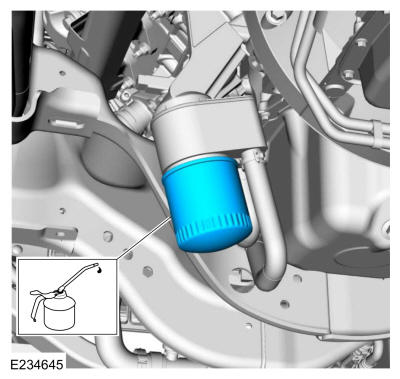

NOTE: Lubricate the oil filter gasket with clean engine oil.
Install a new engine oil filter.
Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 180 deg.
- If equipped with an engine block heater, connect the engine block heater electrical connector.
-
NOTE: The transmission support insulator-to-crossmember nuts must be discarded and new nuts installed, or damage to the vehicle or transmission support insulator may occur.
Remove and discard the transmission support insulator nuts.
-
-
NOTE: The transmission support insulator studs may come out of the insulator while removing the nuts.
If required, tighten transmission support insulator studs.
Torque: 66 lb.ft (90 Nm)
- If the transmission support insulator studs can not be tightened, the transmission support insulator must be replaced. Refer to: Transmission Support Insulator . Refer to: Transmission Support Insulator .
- Install new transmission support insulator nuts.
Torque: 85 lb.ft (115 Nm)
-
- Install the new LH catalytic converter pipe-to-manifold nuts.
Torque: 30 lb.ft (40 Nm)
- Install the new RH catalytic converter pipe-to-manifold nuts.
Torque: 30 lb.ft (40 Nm)
- Install the RH HO2S. Refer to: Heated Oxygen Sensor (HO2S) .
- Position the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)
-
- Install the starter motor wiring harness bracket.

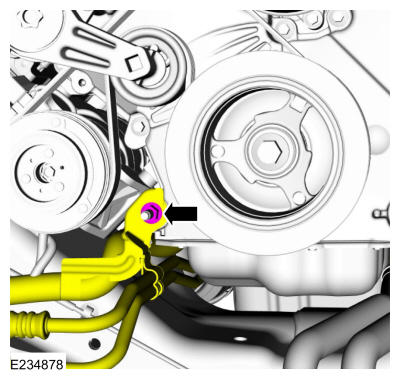

- If equipped with automatic transmission, install the transmission cooler lines bracket.
- Install the nut.
Torque: 18 lb.ft (25 Nm)

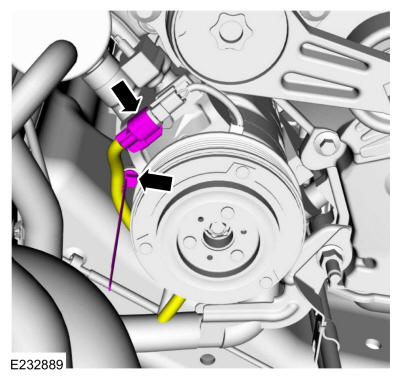

- Connect the A/C compressor electrical connector and attach the wiring harness retainer.

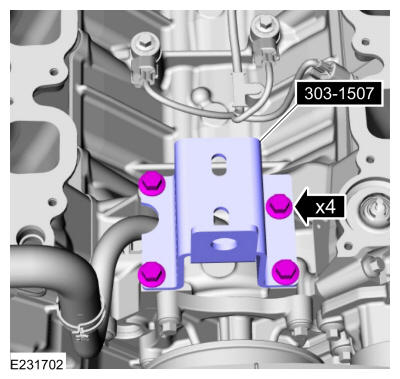

- Remove Special Service Tool: 303-1507 Brackets, Support.
- Install the following items:
- Install the cooling fan shroud. Refer to: Cooling Fan Shroud .
- Install the intake manifold. Refer to: Intake Manifold .
- Fill the engine with clean engine oil. Refer to: Specifications .
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
- Fill and bleed the cooling system. Refer to: ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING
