Engine Front Cover: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the cooling fan shroud. Refer to: Cooling Fan Shroud .
  3. Remove the LH and RH variable camshaft timing (VCT) oil control solenoids. Refer to: Variable Camshaft Timing (VCT) Oil Control Solenoid .

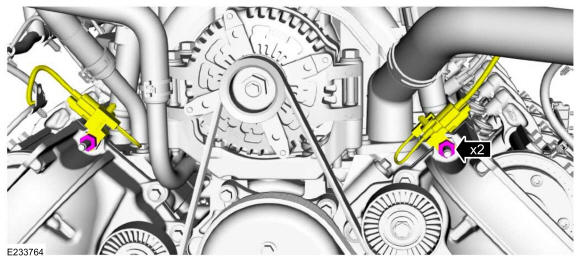

  4. Remove the nuts and position the radio ignition interference capacitors aside.
    GFD405685Courtesy of FORD MOTOR COMPANY

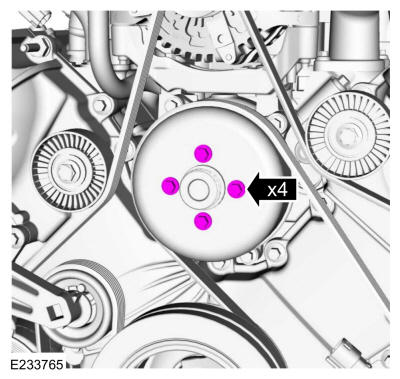

  5. Loosen the coolant pump pulley bolts.
    GFD405686Courtesy of FORD MOTOR COMPANY
  6. Remove the crankshaft front seal. Refer to: Crankshaft Front Seal .

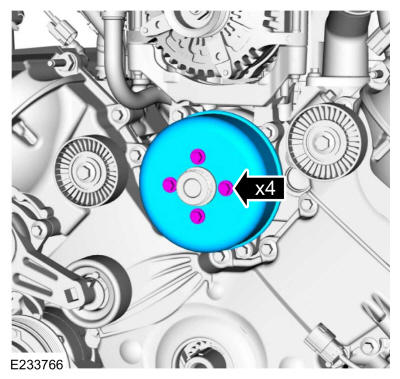

  7. Remove the bolts and the coolant pump pulley.
    GFD405687Courtesy of FORD MOTOR COMPANY

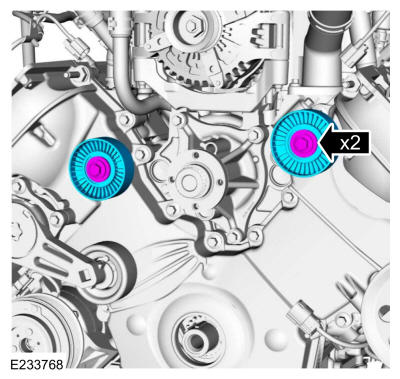

  8. Remove the bolts and the accessory drive belt idler pulleys.
    GFD405688Courtesy of FORD MOTOR COMPANY

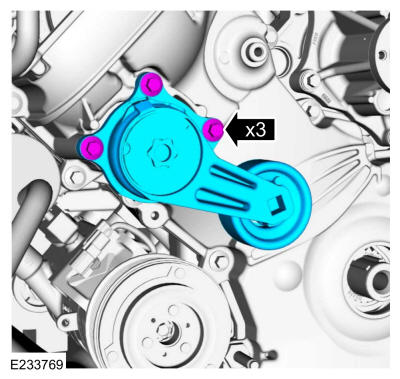

  9. Remove the bolts and the accessory drive belt tensioner.
    GFD405689Courtesy of FORD MOTOR COMPANY

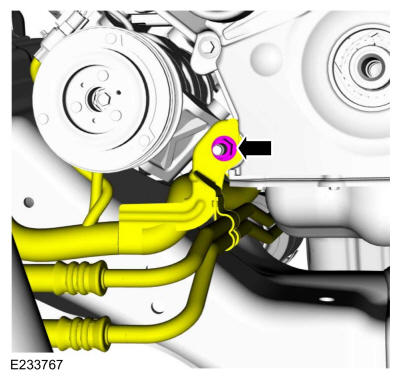

    • Remove the nut.

    • If equipped with automatic transmission, remove the transmission cooler lines bracket.

    • Remove the starter motor wiring harness bracket.

    GFD405690Courtesy of FORD MOTOR COMPANY

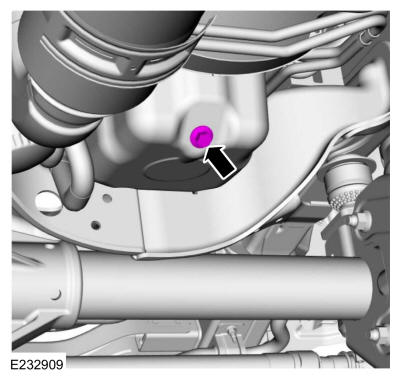

    • Remove the drain plug and drain the engine oil.. Use the General Equipment: Oil Drain Equipment

    • Install the drain plug.

      Torque: 17 lb.ft (23 Nm)

    GFD405668Courtesy of FORD MOTOR COMPANY

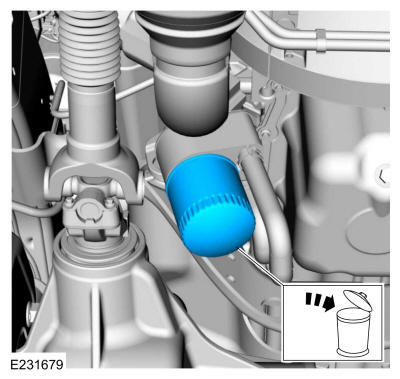

  12. Remove and discard the engine oil filter.. Use the General Equipment: Oil Drain Equipment
    GFD405669Courtesy of FORD MOTOR COMPANY
  13. Remove the bolt and the power steering pump pressure line.
    GFD405691Courtesy of FORD MOTOR COMPANY

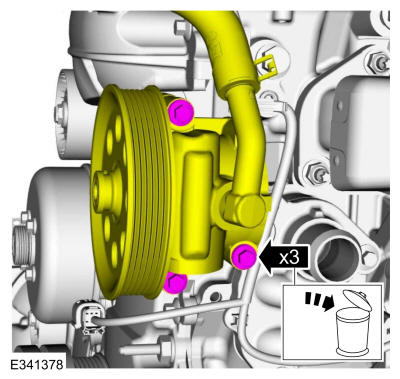

  14. Remove and discard the bolts and position the power steering pump aside.
    GFD405692Courtesy of FORD MOTOR COMPANY

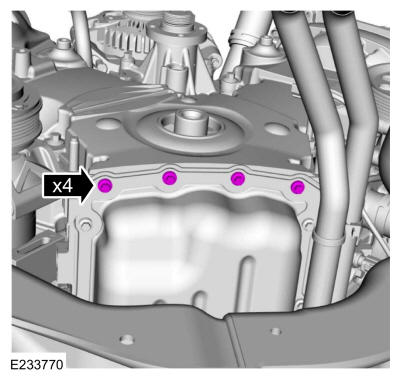

  15. Remove the front oil pan bolts.
    GFD405693Courtesy of FORD MOTOR COMPANY

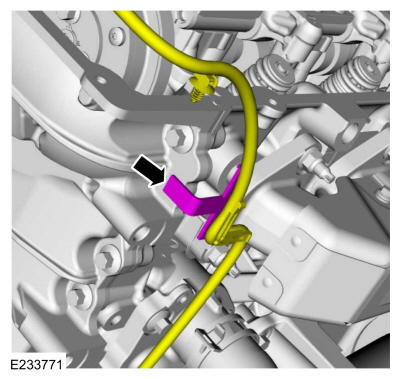

  16. Detach the wiring harness retainer from the engine front cover.
    GFD405694Courtesy of FORD MOTOR COMPANY

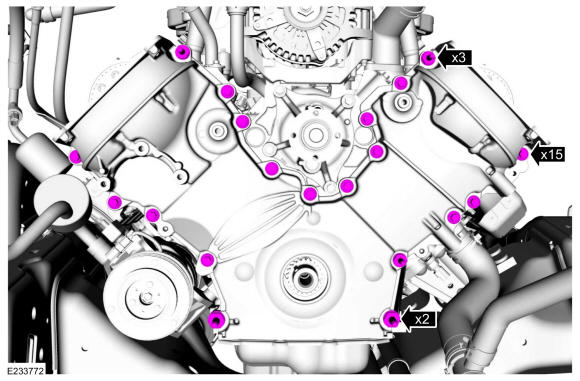

  17. Remove the bolts and stud bolts from the engine front cover.
    GFD405695Courtesy of FORD MOTOR COMPANY

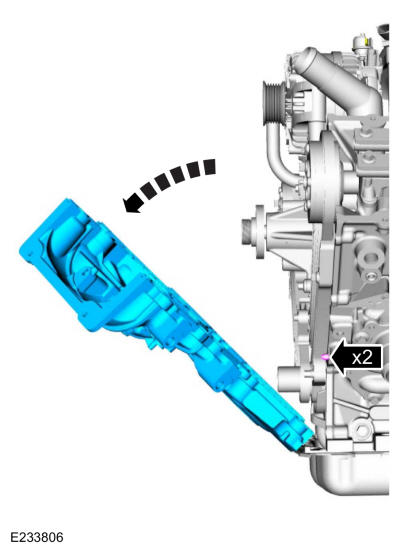

  18. Remove the engine front cover from the dowels.
    GFD405696Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the engine front cover gaskets.
    GFD405697Courtesy of FORD MOTOR COMPANY
  20. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD405698Courtesy of FORD MOTOR COMPANY

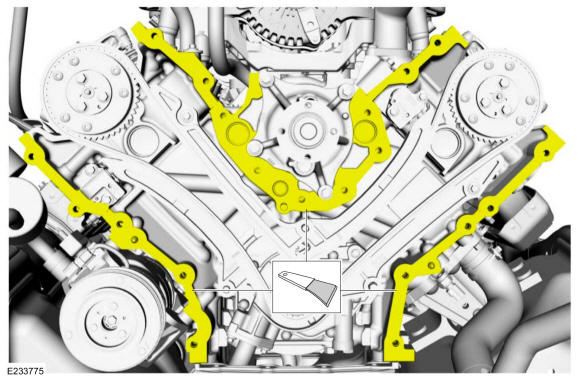

  21. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD405699Courtesy of FORD MOTOR COMPANY
