Crankshaft Front Seal: Installation
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the engine front cover bore with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
- Using the special tools, install the new crankshaft front seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1508 Installer, Front Crank Seal.
- Lubricate the crankshaft front seal inner lip with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
-
NOTE: If the crankshaft pulley is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned.
Apply a bead of silicone gasket and sealant to the woodruff key slot.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

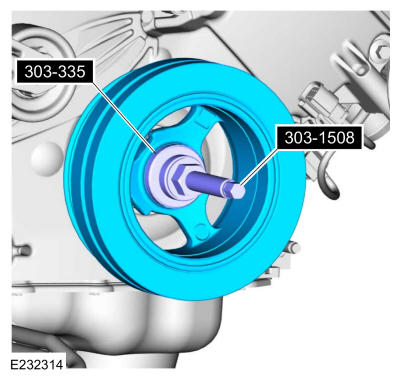

- Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1508 Installer, Front Crank Seal.
- Using the strap wrench, install a new crankshaft pulley bolt and tighten in 2 stages.. Use the General Equipment: Strap Wrench
Torque: Stage 1: 129 lb.ft (175 Nm) | Stage 2: 90 deg.
- Rotate the accessory drive belt tensioner clockwise and install the accessory drive belt onto the crankshaft pulley.
- Install the cooling fan shroud. Refer to: Cooling Fan Shroud .
- Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
