Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.

LH cylinder head

  1. Remove and discard the CHT sensor.

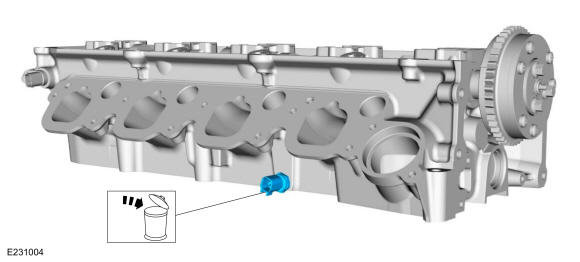

    GFD406051Courtesy of FORD MOTOR COMPANY

    All cylinder heads

  2. NOTE: LH shown, RH similar.

    Remove the bolt and the ground strap.

    GFD406052Courtesy of FORD MOTOR COMPANY
  3. NOTE: LH shown, RH similar.

    Remove the bolt and the CMP sensor.

    GFD406053Courtesy of FORD MOTOR COMPANY
  4. NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.
    NOTE: Only use hand tools when removing or installing the spark plugs or damage can occur to the cylinder head or spark plug.
    NOTE: LH shown, RH similar.

    Remove upper the spark plugs.

    GFD406054Courtesy of FORD MOTOR COMPANY
  5. Inspect the spark plugs. Refer to: Spark Plug Inspection .
  6. NOTE: Damage to the VCT unit assembly will occur if mishandled or used as a lifting or leveraging device.
    NOTE: Only use hand tools to remove the VCT unit assembly or damage may occur to the camshaft or VCT unit.
    NOTE: LH shown, RH similar.

    • Using a 26 mm (1.023 in) wrench on the flats of the camshaft to secure the camshaft, remove the VCT unit bolts and the VCT unit.

    • Discard the VCT unit bolts.

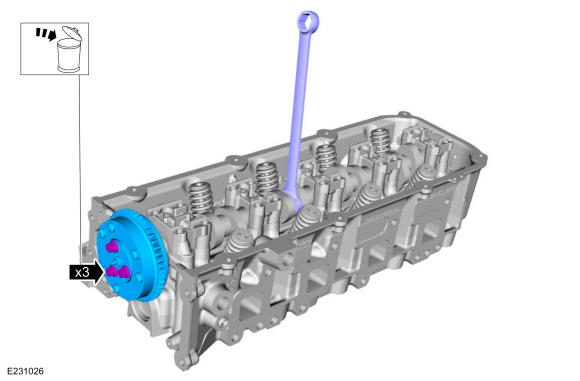

    GFD406055Courtesy of FORD MOTOR COMPANY
  7. NOTE: LH shown, RH similar.

    Remove and discard the VCT system oil filter.

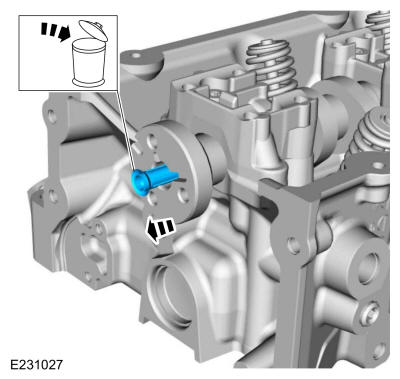

    GFD406056Courtesy of FORD MOTOR COMPANY
  8. NOTE: The camshaft bearing caps must be installed in their original locations. Record camshaft bearing cap locations. Failure to follow these instructions may result in engine damage.
    NOTE: LH shown, RH similar.

    • Remove the bolts, camshaft bearing caps and camshaft.

    • Inspect the camshaft lobes for pitting or damage.

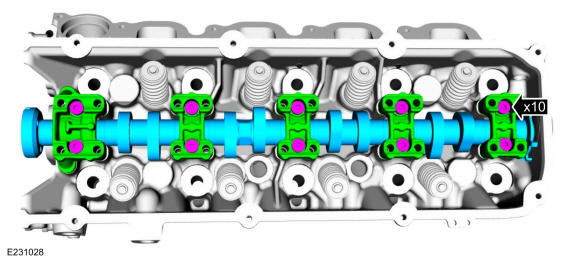

    GFD406057Courtesy of FORD MOTOR COMPANY
  9. NOTE: If the components are to be reinstalled, they must be installed into their original locations. Failure to follow this instruction may result in engine damage.
    NOTE: Use a commercially available valve spring compressor.
    NOTE: Use a small screwdriver and multi-purpose grease to remove the valve collets.
    NOTE: LH shown, RH similar.

    Remove the valve collets, valve spring retainer and the valve spring.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD406058Courtesy of FORD MOTOR COMPANY

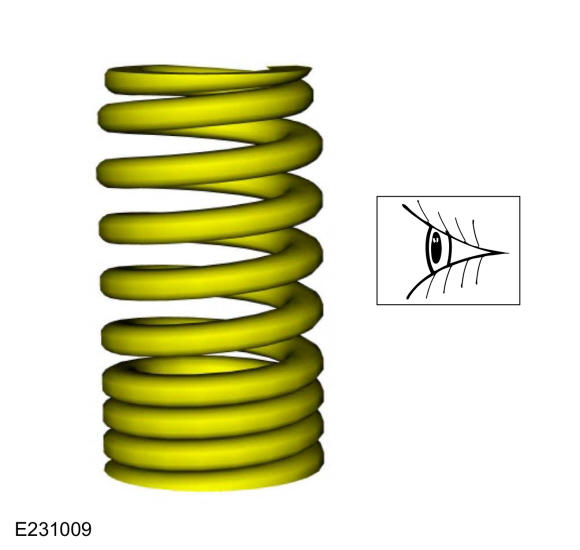

  10. Inspect and install new parts, as necessary.
    GFD406059Courtesy of FORD MOTOR COMPANY
  11. NOTE: Use commercially available valve stem seal pliers.
    NOTE: LH shown, RH similar.

    Remove and discard the valve seal.

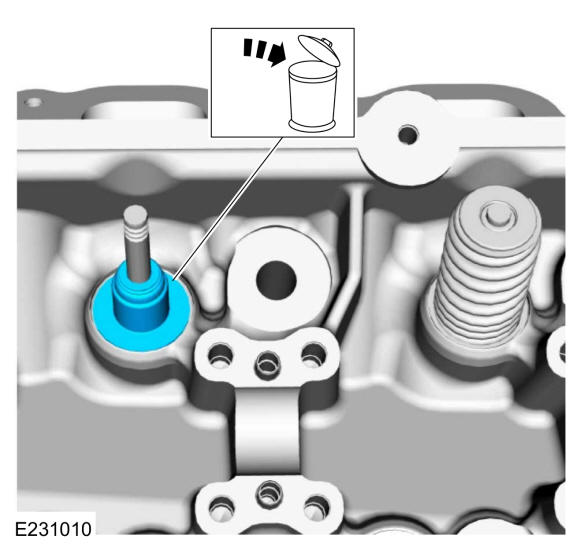

    GFD406060Courtesy of FORD MOTOR COMPANY
  12. NOTE: Note the location of the valves if they are to be reused.
    NOTE: LH shown, RH similar.

    Remove the valve from the cylinder head.

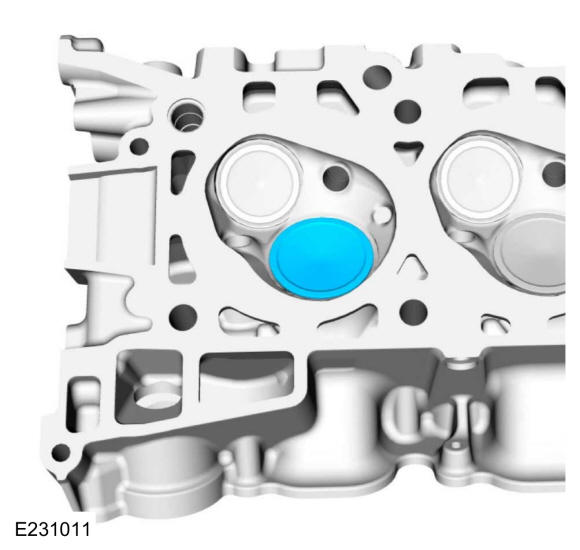

    GFD406061Courtesy of FORD MOTOR COMPANY
  13. Repeat the above steps for each valve.
  14. NOTE: LH shown, RH similar.

    Inspect the intake and exhaust valve guides and valve seats.

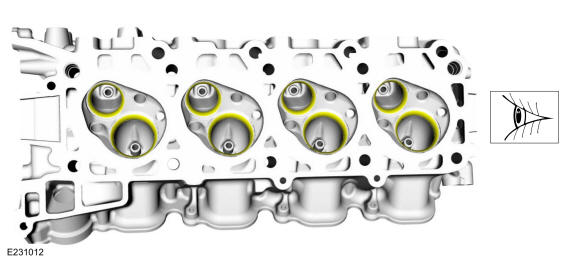

    GFD406062Courtesy of FORD MOTOR COMPANY
    1. Inspect the following valve areas: The end of the stem for grooves or scoring.
    2. The valve face and the edge for pits, grooves or scores.
    3. The valve head for signs of burning, erosion, warpage and cracking.
    4. The valve margin for wear.

    • Install new parts as necessary.

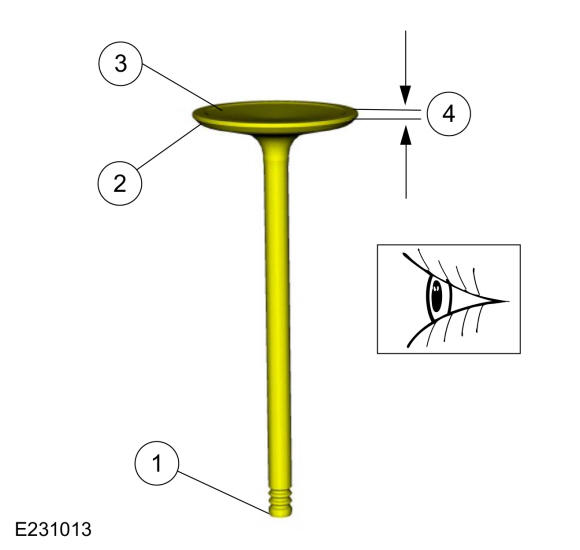

GFD406063Courtesy of FORD MOTOR COMPANY
