Passive Anti-Theft System (PATS) Center Antenna - Vehicles Without: Center Console: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

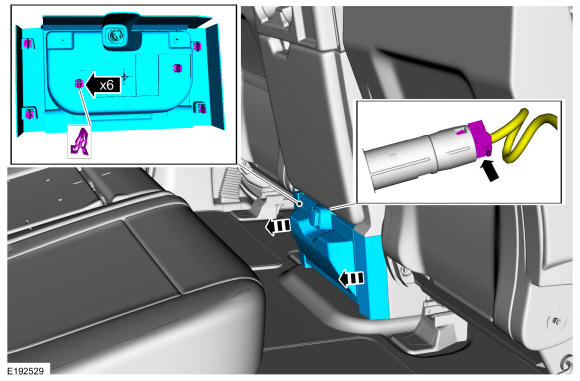

Release the clips, disconnect the auxiliary power outlet electrical connector and remove the rear trim panel.

Courtesy of FORD MOTOR COMPANY

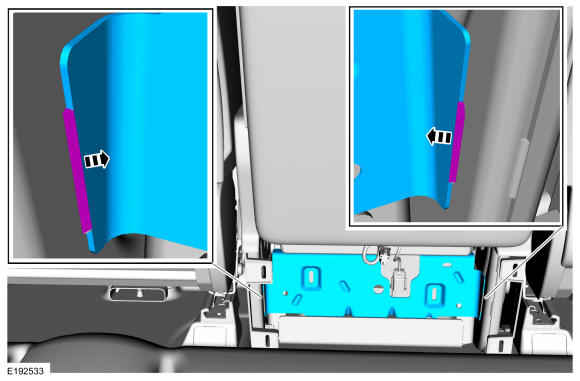

Release the tabs and remove the center seat lower rear trim panel.

Courtesy of FORD MOTOR COMPANY

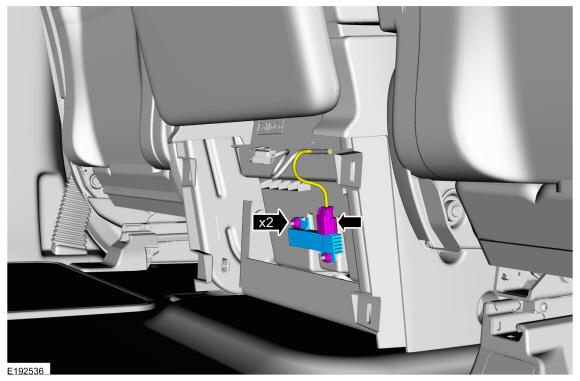

Remove the nuts, disconnect the electrical connector and remove the center PATS antenna.

Courtesy of FORD MOTOR COMPANY
