Passive Anti-Theft System (PATS) Center Antenna - Vehicles With: Center Console: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

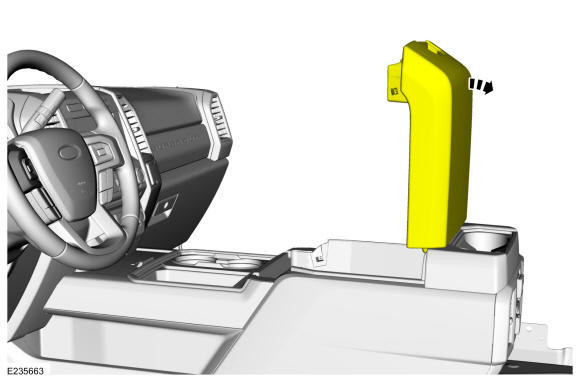

Open the floor console lid.

Courtesy of FORD MOTOR COMPANY

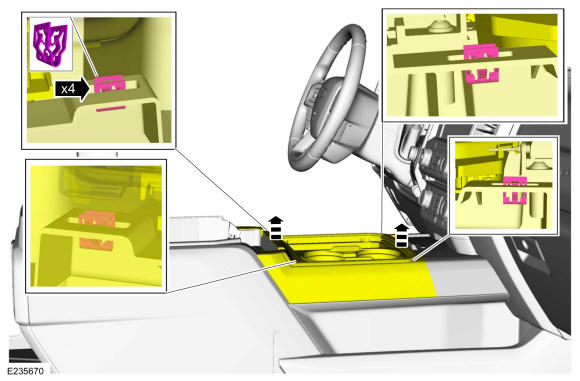

Release the floor console upper trim panel clips.

Courtesy of FORD MOTOR COMPANY

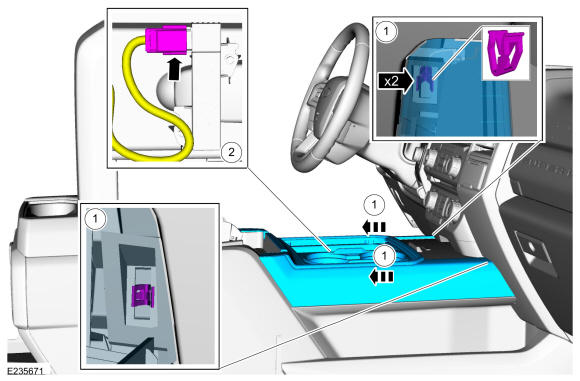

Remove the floor console upper trim panel.
1. Release the trim panel front clips.
2. Disconnect the center PATS antenna electrical connector.
Courtesy of FORD MOTOR COMPANY

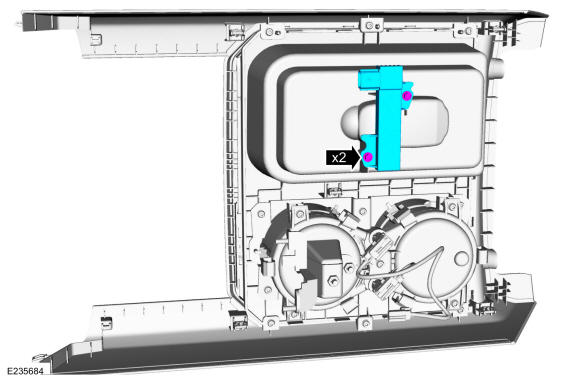

Remove the bolts and the center PATS antenna.

Courtesy of FORD MOTOR COMPANY
