Passive Anti-Theft System (PATS) - Component Location
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

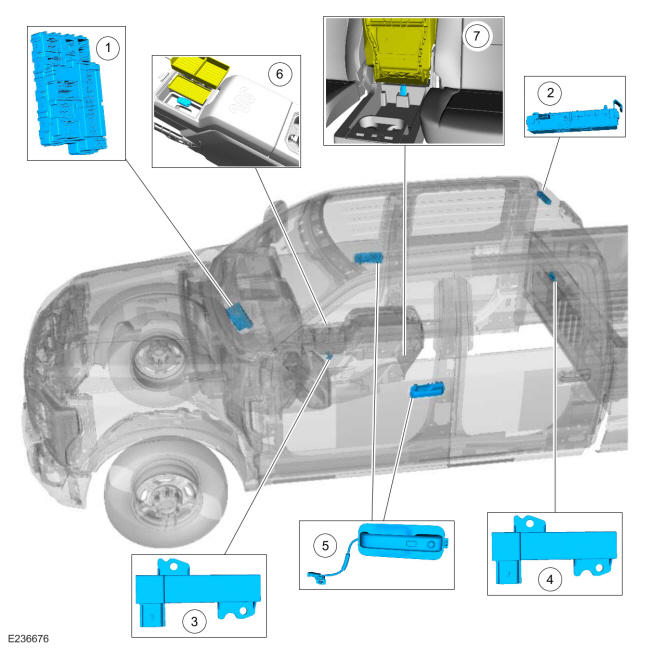

| Item |
Description |
| 1 |
BCM |
| 2 |
RTM |
| 3 |
PATS center antenna |
| 4 |
PATS rear antenna |
| 5 |
Door handle antennas (exterior front door handles) |
| 6 |
Passive key backup starting location (vehicles equipped with a floor console) |
| 7 |
Passive key backup starting location (vehicles not equipped with a floor console) |
