Windshield Washer Reservoir: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

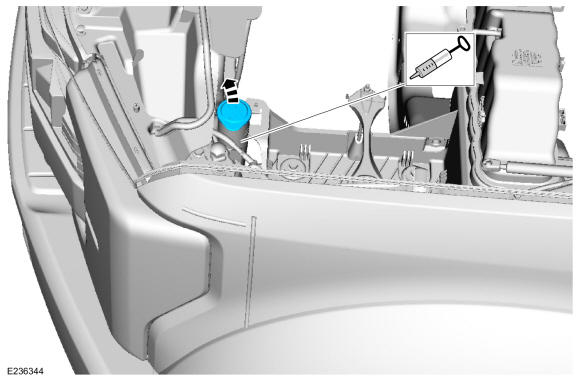

- Remove the cap and siphon the windshield washer fluid from the reservoir. Use the General Equipment: Fluid Suction Gun

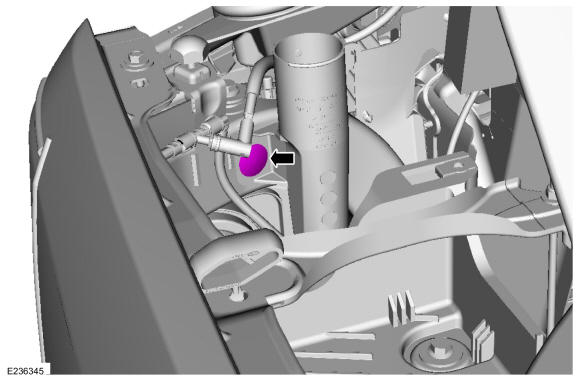

- Remove the pin-type retainer.
-

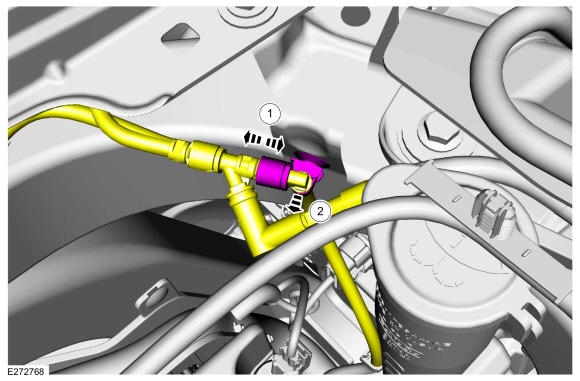

- Disconnect the windshield washer hose.
- Detach the pin-type retainer and position aside the windshield washer hose.

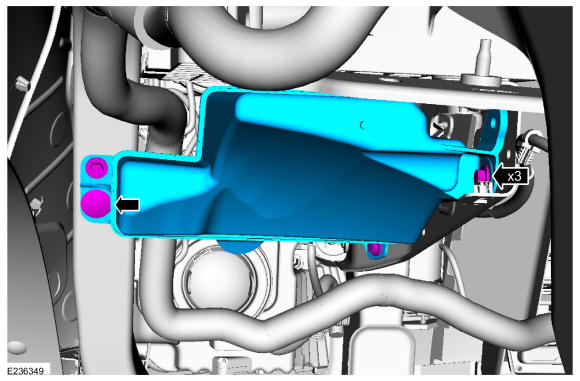

- Remove the LH front fender splash shield Refer to: Fender Splash Shield .

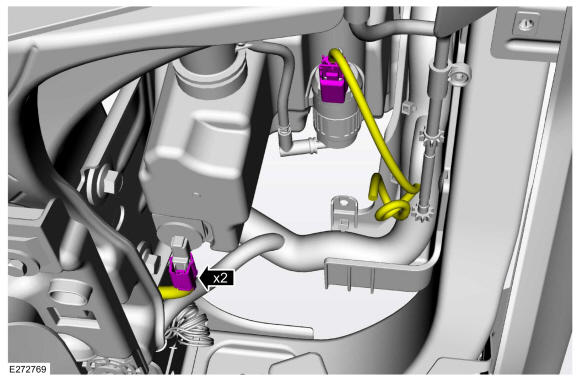

- Disconnect the electrical connectors.
-
NOTE: Be prepared to collect escaping fluid.
Remove the retainers and the windshield washer reservoir. Use the General Equipment: Fluid Container

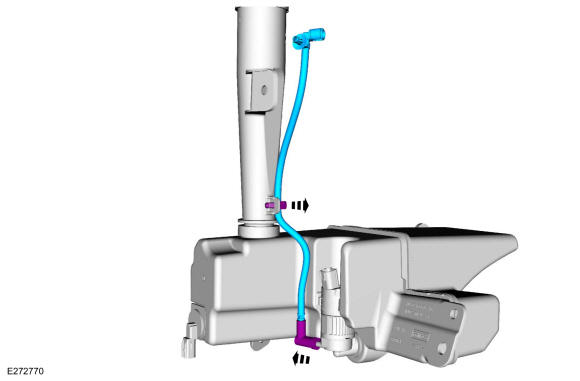

- Disconnect the windshield washer hose from the windshield washer pump, detach the pin-type retainer and remove the windshield washer hose.
