Windshield Washer Jets: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the cowl panel grill. Refer to: Cowl Panel Grille .

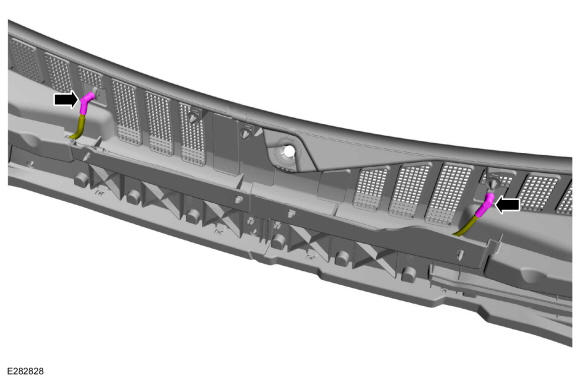

- Disconnect the windshield washer hose(s).

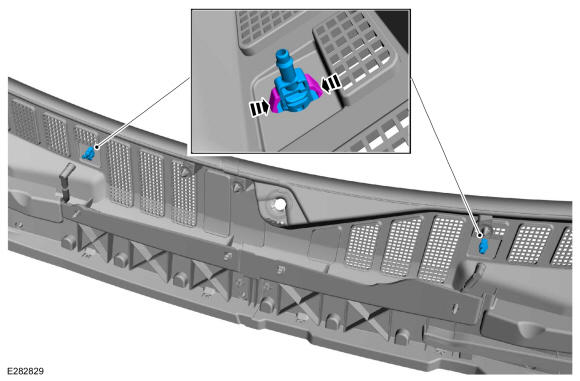

- Press inward on the tabs and remove the windshield washer jet(s).
