Steering Linkage Damper - F-250/F-350, RWD: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
NOTE:
Removal steps in this procedure may contain installation details.
- Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

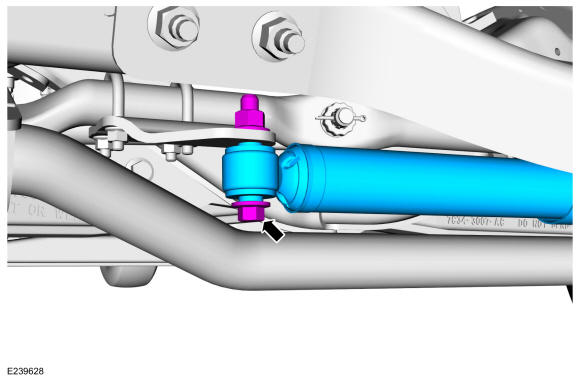

- Remove the steering linkage damper-to-frame bracket bolt.
Torque: 59 lb.ft (80 Nm)
- Remove the steering linkage damper-to-center link bracket bolt and nut and remove the steering linkage damper.
Torque: 66 lb.ft (90 Nm)
