Idler Arm and Bracket: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
-

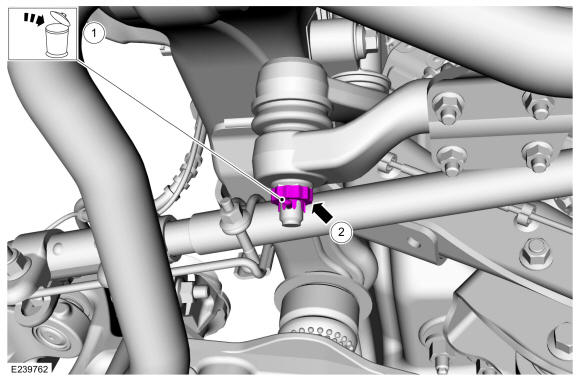

- Remove and discard the idler arm cotter pin.

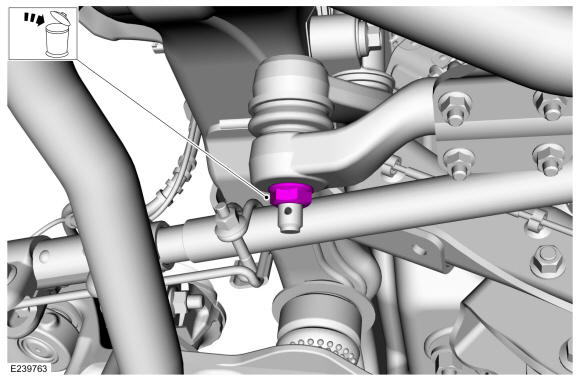

- Remove the idler arm nut retainer.
- Remove the idler arm nut.

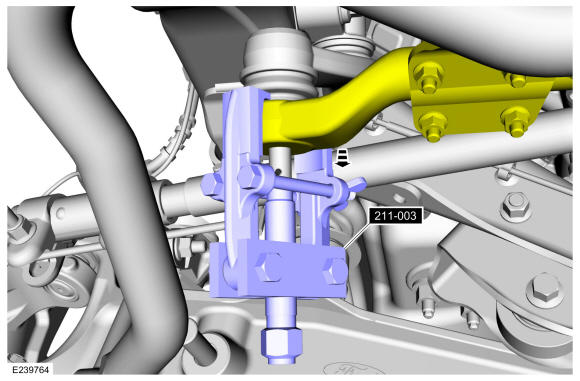

- Separate the sector shaft arm drag link from the idler arm. Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

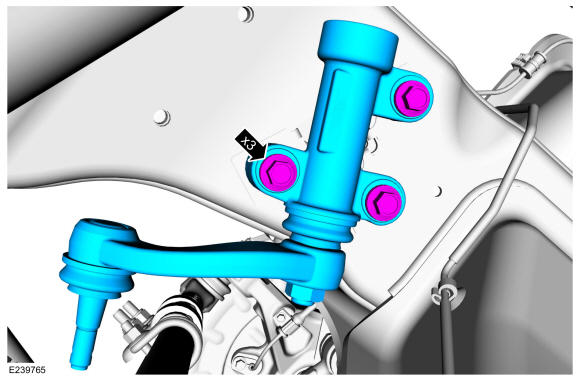

- Remove the idler arm bolts and remove the idler arm.
Torque: 76 lb.ft (103 Nm)
