Steering Column Shrouds: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

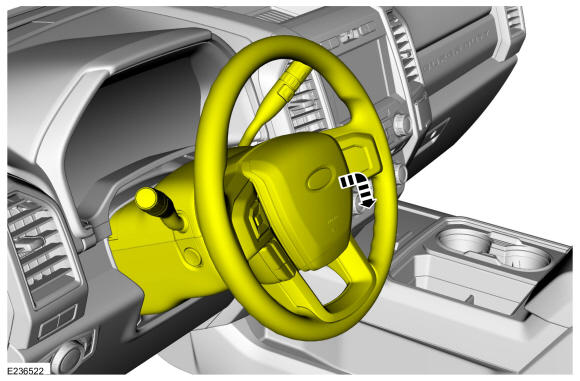

- Fully extend and lower the steering column.

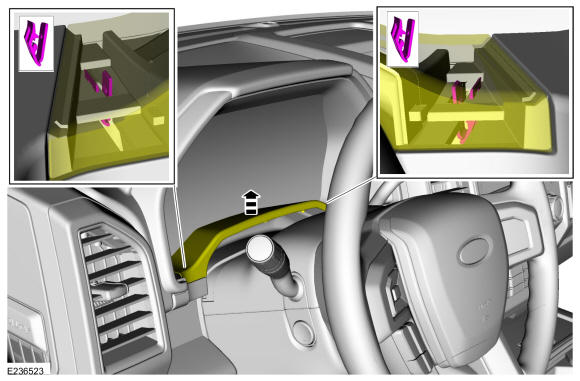

- Release the upper gap hider from the IPC and position aside.

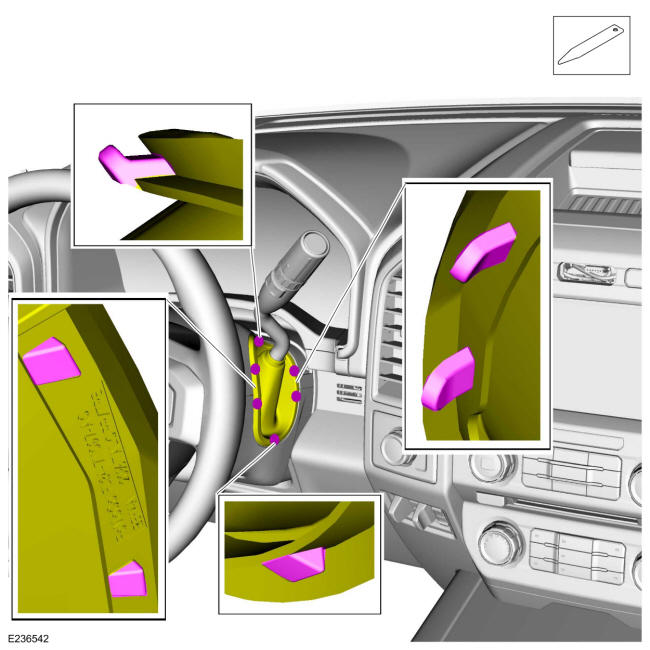

- Release the tabs and position the gear selector boot aside. Use the General Equipment: Interior Trim Remover
- Release the upper steering column shroud front clips.

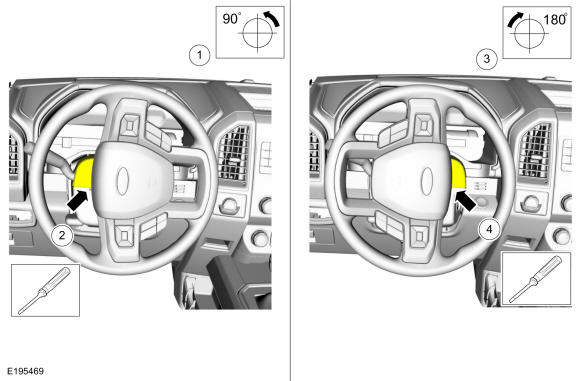

- Rotate the steering wheel 90 degrees to the left.
- Release the LH clip. Use the General Equipment: Flat-Bladed Screwdriver
- Rotate the steering wheel 180 degrees to the right.
- Release the RH clip. Use the General Equipment: Flat-Bladed Screwdriver
- Release the outer clips on each side and remove the steering column upper shroud. Use the General Equipment: Interior Trim Remover

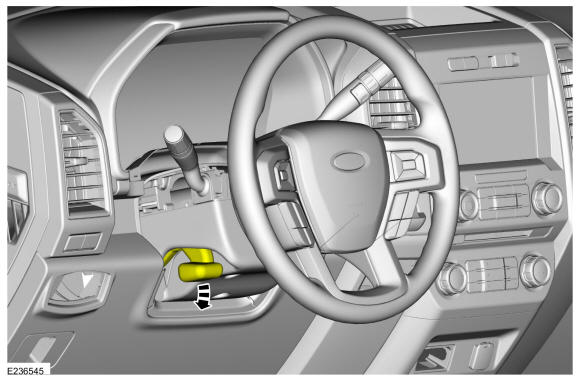

- If equipped. Position the manual steering column adjust lever in the down position.

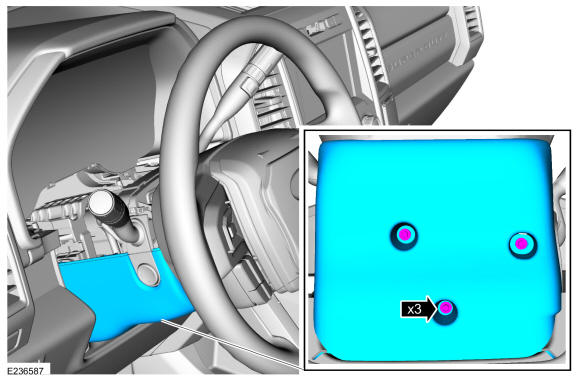

- Remove the bolts and the lower steering column shroud.
