Loadspace Trim Panel - Regular Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- On both sides. Remove the upper and lower B-pillar trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .
-
NOTE: Front outboard seats removed for clarity.

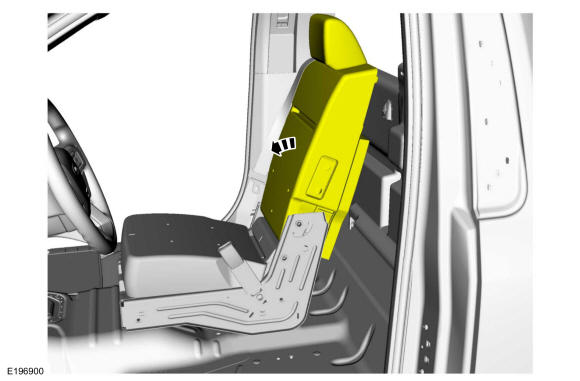

If equipped. Position the center seat backrest forward.

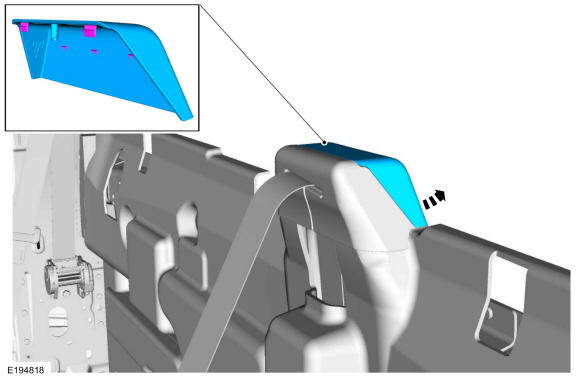

- If equipped. Remove the center seatbelt rear guide cover.
- If equipped. Remove the center seatbelt front guide cover.

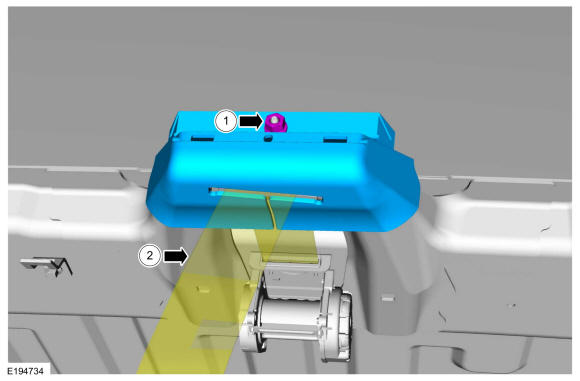

- Remove the nut.
Torque: 42 lb.in (4.8 Nm)
- Position the seatbelt through the slot and remove the cover.
- Remove the nut.

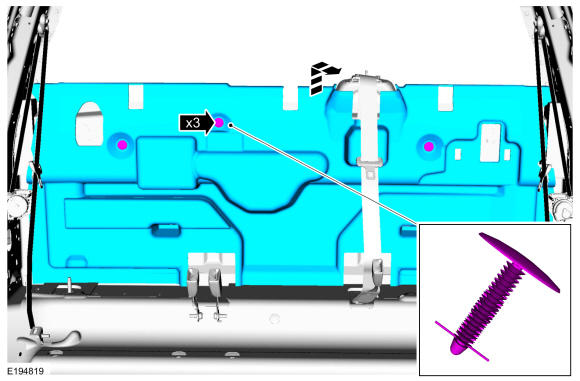

- Remove the pin-type retainers and the loadspace trim panel.
