Loadspace Trim Panel - Crew Cab/Super Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Crew Cab shown, Super Cab similar.
NOTE:
Removal steps in this procedure may contain installation details.

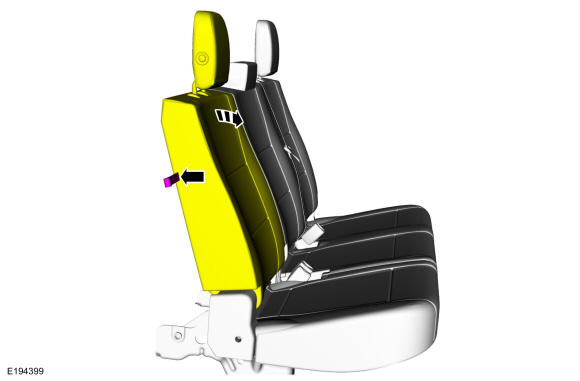

- Release the seat latch and fold the RH rear seat backrest down.
Super Cab
-
NOTE: During installation, the striker should be in its lowest position for the latch to engage.
Lower the LH seat backrest.

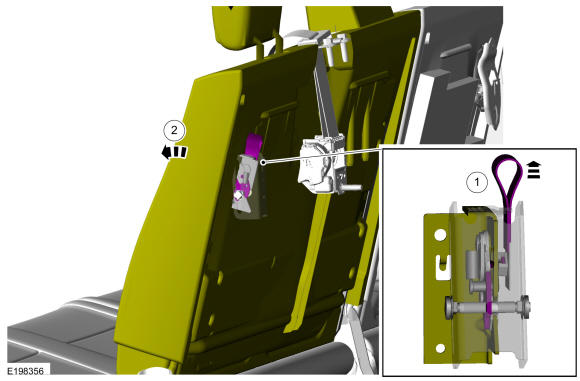

- Pull the backrest release strap and release the latch from the striker.
- Lower the backrest.
- On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - Super Cab .
Crew Cab
-
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.NOTE: During installation, the striker should be in its lowest position for the latch to engage.
Lower the LH rear seat backrest.

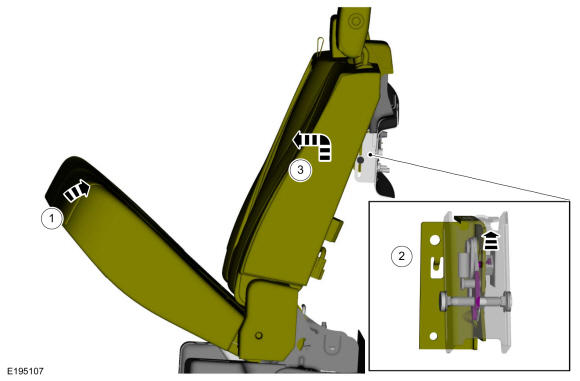

- Raise the seat cushion.
- Release the backrest latch.
- Lower the backrest down.
- On both sides. Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel
.
All vehicles
- Remove the center seatbelt rear guide cover.
- Remove the center seatbelt front guide cover.
- Remove the retainer.
Torque: 42 lb.in (4.8 Nm)
- Position the seatbelt through the slot and remove the cover.
- Remove the retainer.
- If equipped. Remove the subwoofer speaker. Refer to: Subwoofer Speaker
.
Vehicles with digital signal processing module
- Remove the DSP. Refer to: Audio Digital Signal Processing (DSP) Module .

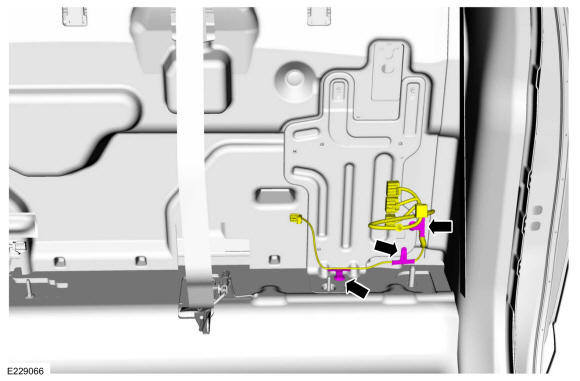

- Release the retainers and position the DSP wiring harness aside.

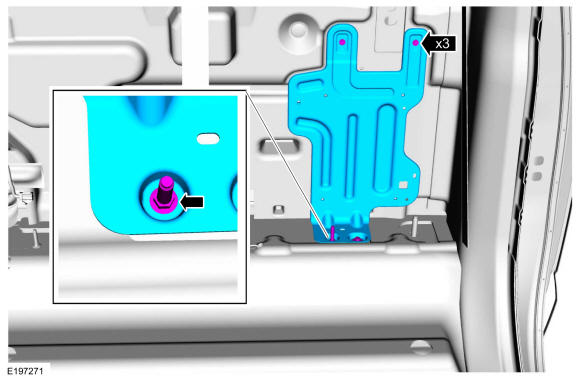

- Remove the retainers and the DSP bracket.
All vehicles
- Release the pin-type retainers and remove the loadspace trim panel.
