Headliner - Lowering - Regular Cab

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

On both sides. Remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
On both sides. Remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel - Regular Cab .
NOTE: LH side shown, RH side similar.

On both sides. Remove the sun visor.
1. Remove the screw cover.
2. Remove the screw.
3. Remove the sun visor.
4. If equipped. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

On both sides. Remove the screws and the sun visor clips.

Courtesy of FORD MOTOR COMPANY
If equipped. Release the clips and remove the rain sensor outer covers.

Courtesy of FORD MOTOR COMPANY

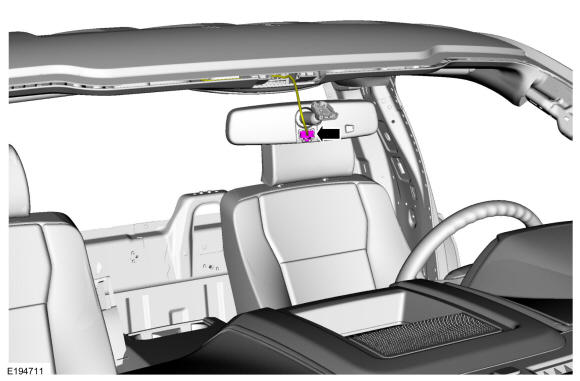

If equipped. Disconnect the rear view mirror electrical connector.

Courtesy of FORD MOTOR COMPANY
If equipped. Disconnect the rain sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

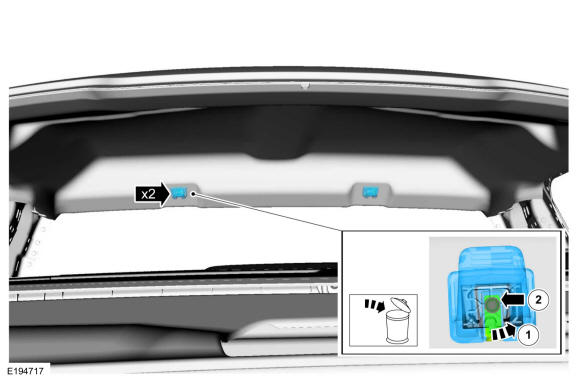

On both sides. Remove and discard the garment hooks.
1. Open the garment hook cover.
2. Remove the screw.
Courtesy of FORD MOTOR COMPANY
Disconnect the headliner wiring harness connectors, release the wiring harness retainer and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

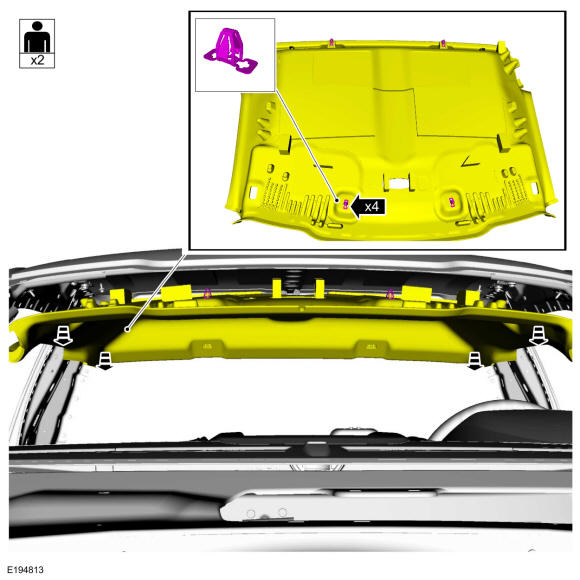

Release the clips and lower the headliner.

Courtesy of FORD MOTOR COMPANY
