C-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: During installation, attach the scuffplate trim panels at the lower B-pillar trim panel first.

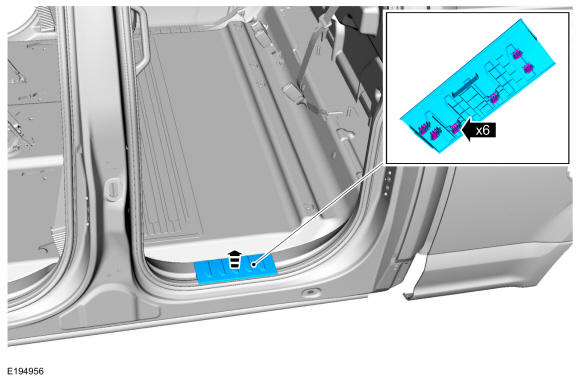

Release the clips and remove the rear door scuffplate trim panel.

Courtesy of FORD MOTOR COMPANY

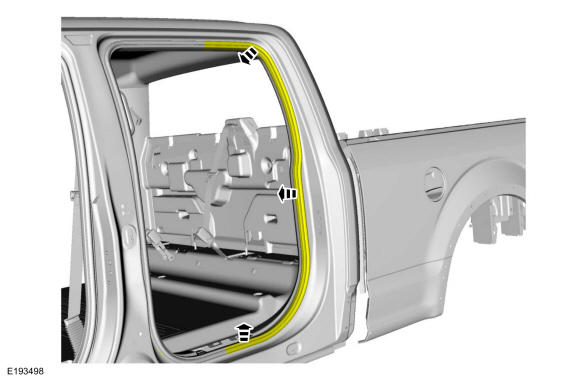

Position the rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

Vehicles without Inflatable Seatbelts

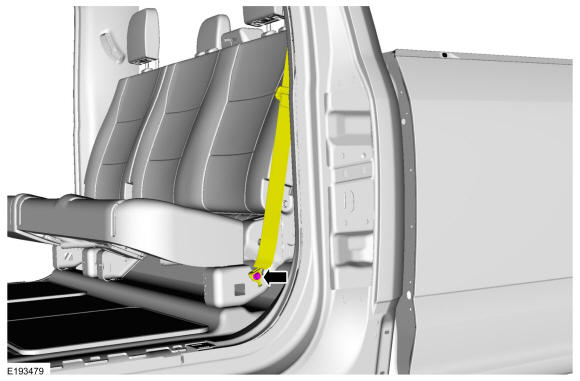

Remove the bolt and the position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with Inflatable Seatbelts
NOTE: Follow the unique instruction or graphic for this step in installation.

Open the seatbelt tongue cover.

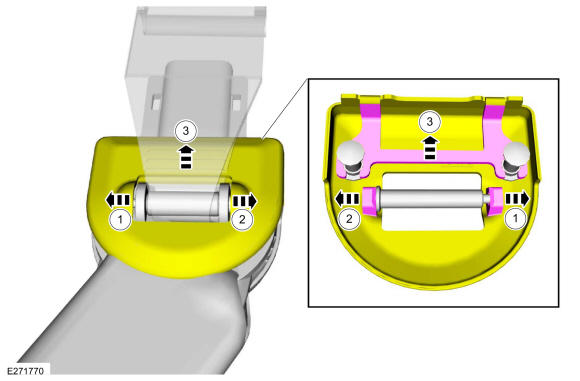

1. Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
2. Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
3. Push the seatbelt tongue lower cover forward to disengage and open the cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instruction or graphic for this step in installation.

Disassemble the lap belt from the seatbelt tongue.

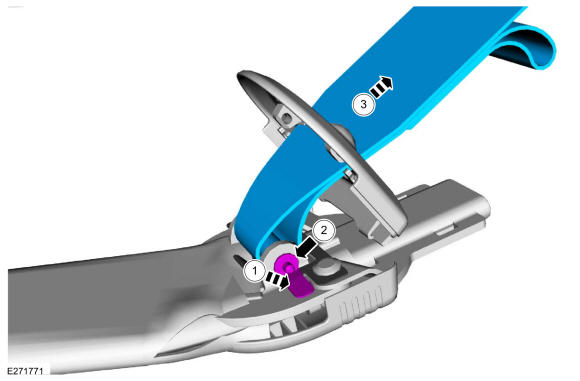

1. Push down on the lap belt spring clip.
2. Remove the pin.
3. Pull the lap belt through the seatbelt tongue cover.
Courtesy of FORD MOTOR COMPANY

Vehicles with rear under seat storage

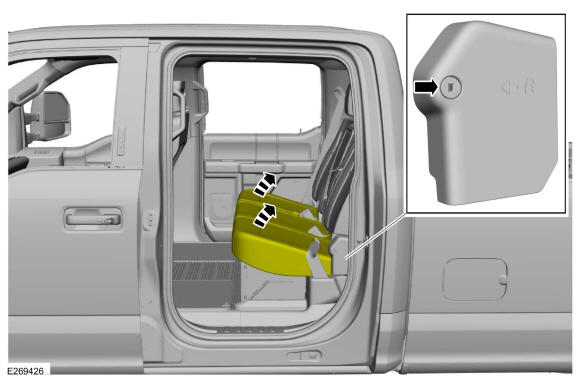

Raise the rear seat cushion to the folded up position.

Courtesy of FORD MOTOR COMPANY

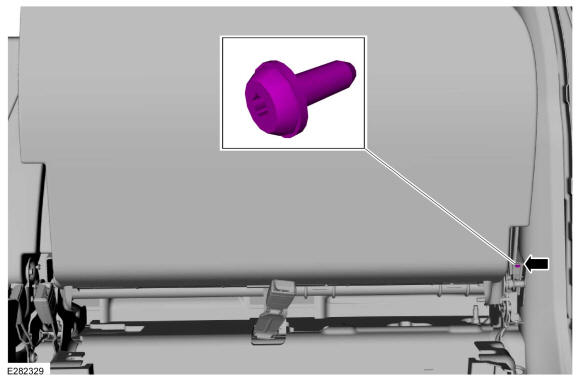

Remove the retainer from the outboard cushion side shield.

Courtesy of FORD MOTOR COMPANY

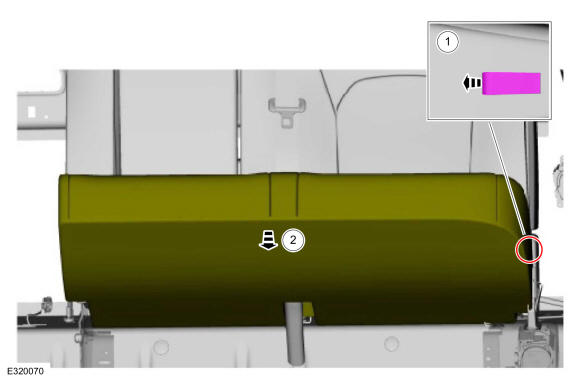

Lower the rear seat cushion to the folded down position.
1. Pull the release strap.
2. Lower the rear seat cushion to the folded down position.
Courtesy of FORD MOTOR COMPANY

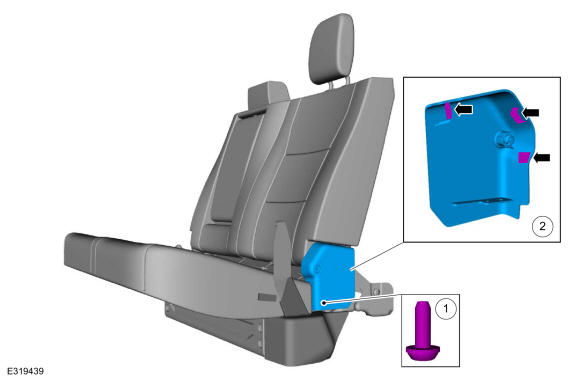

Remove the rear seat side shield.
1. Remove the screw.
2. Release the retainers. Use the General Equipment: Pick Hook
Courtesy of FORD MOTOR COMPANY

Vehicles without rear under seat storage

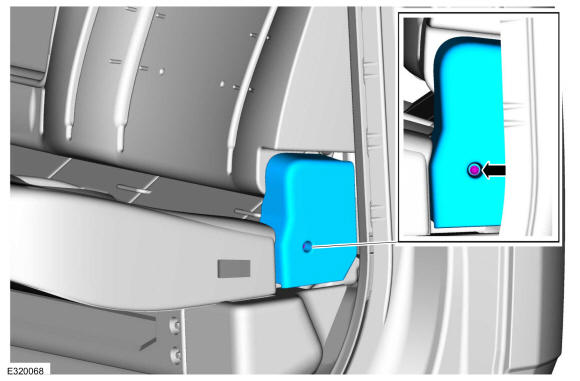

Remove the retainer and the outboard cushion side shield.

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: If the tether clip is damaged during removal, a new clip must be installed prior to installation of the trim panel.

NOTE: During installation, install the clip by the scuffplate trim panel first and work upward on the trim panel to connect the other clips.

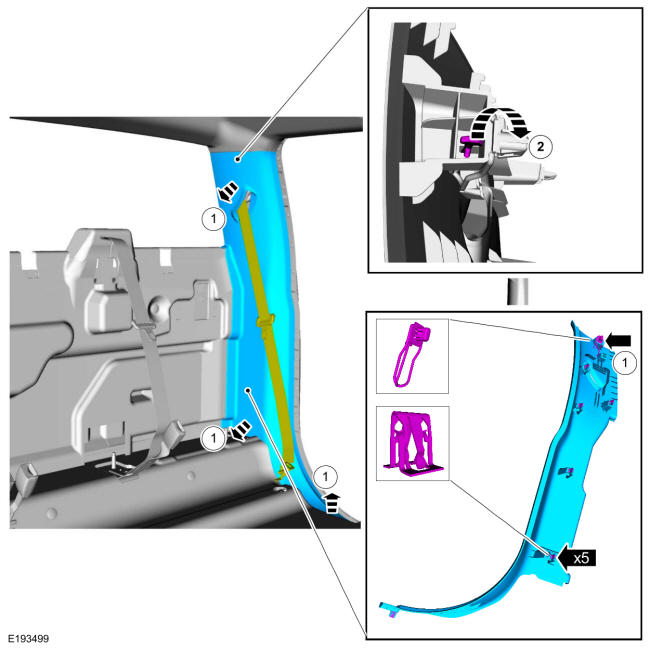

Remove the C-pillar trim panel.
1. Release the clips.
2. Release the tether clip.

Courtesy of FORD MOTOR COMPANY
