C-Pillar Trim Panel: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.
To install, reverse the removal procedure.
-
NOTE: The secondary seatbelt web loop must be positioned down to prevent twisting of the seatbelt.

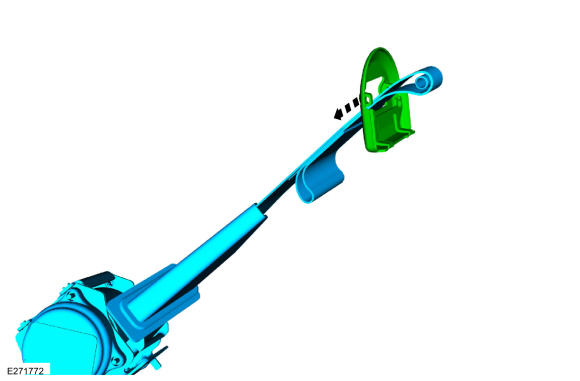

Feed the lap belt through the seatbelt tongue cover.

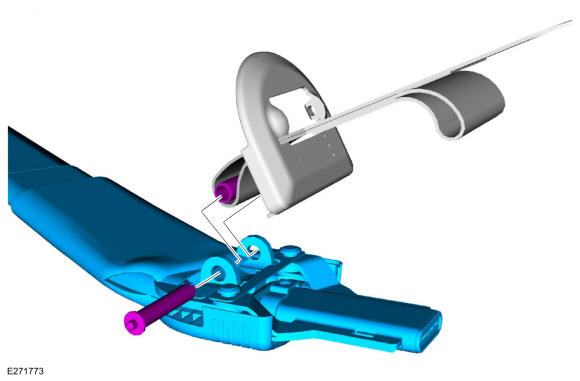

- Install the pin through the seatbelt tongue and the lap belt bushing.
-
NOTE: Make sure the pin is pushed all the way in and the spring clip is allowed to ride up on the shoulder of the pin.

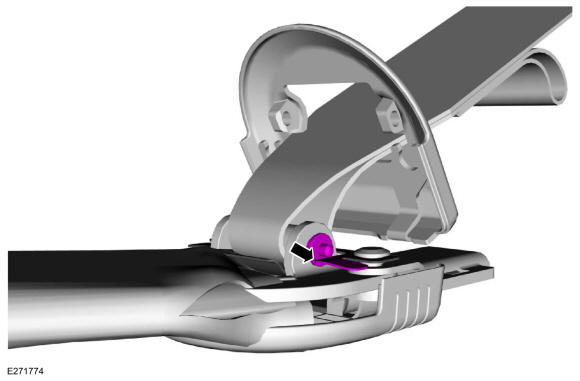

Position the spring clip up on the shoulder of the pin.

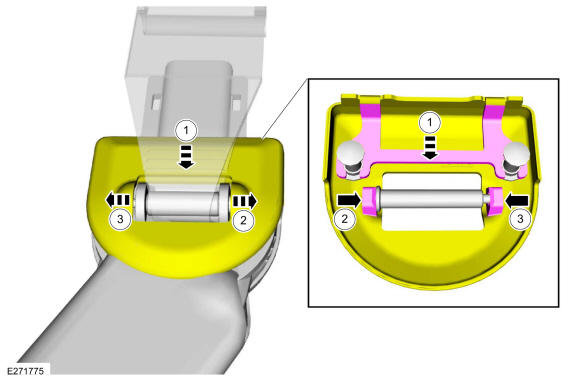

- Close the seatbelt tongue cover.
- Push the seatbelt tongue lower cover forward to engage the cover.
- Push the seatbelt tongue lower cover to one side, lift and engage that side of the cover.
- Push the seatbelt tongue lower cover to one side, lift and engage that side of the cover.
- Check the seatbelt system for correct operation. Refer to: Seatbelt Systems .
