B-Pillar Trim Panel - Super Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

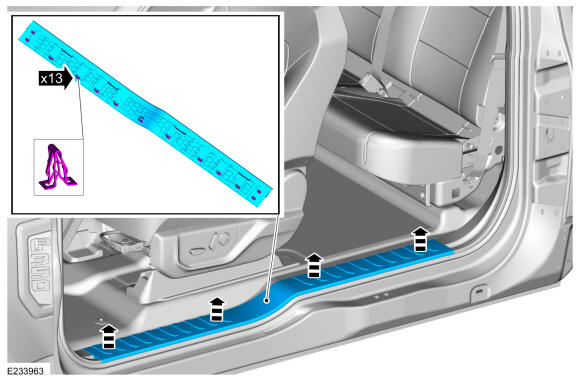

Release the clips and remove the scuffplate trim panel.

Courtesy of FORD MOTOR COMPANY

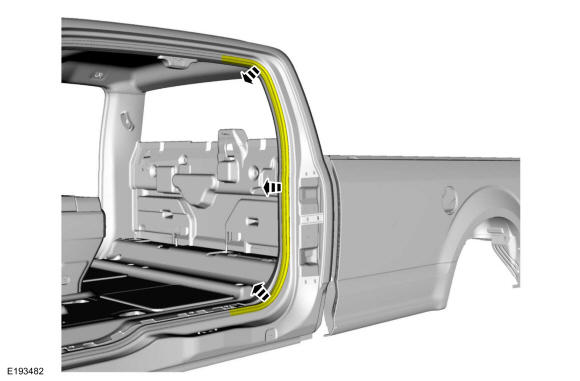

Position the rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the tether clip is damaged during removal, a new clip must be installed prior to installation of the trim panel.

NOTE: During installation, install the clip by the scuffplate trim panel first and work upward on the trim panel to connect the other clips.

Remove the B-pillar trim panel.
1. Release the clips.
2. Release the tether clip from the trim panel.

Courtesy of FORD MOTOR COMPANY
