B-Pillar Trim Panel - Regular Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: RH side shown, LH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Upper and Lower B-Pillar Trim Panels

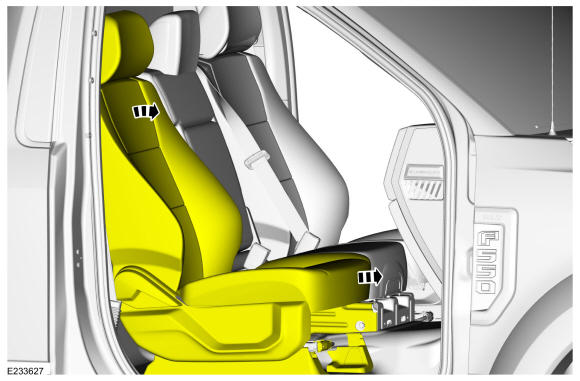

Position the seat and the backrest fully forward.

Courtesy of FORD MOTOR COMPANY
NOTE: During installation, attach the scuffplate trim panel to the lower B-pillar trim panel first.

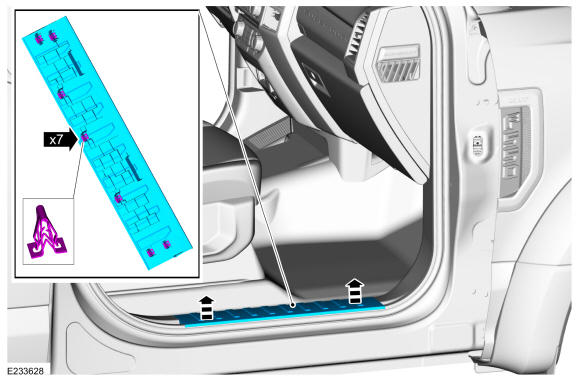

Release the clips and remove the scuffplate trim panel.

Courtesy of FORD MOTOR COMPANY

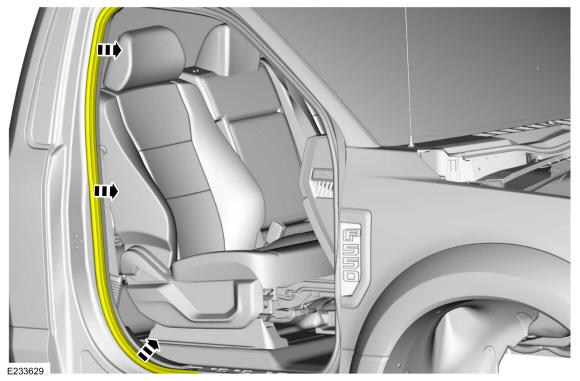

Position the weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

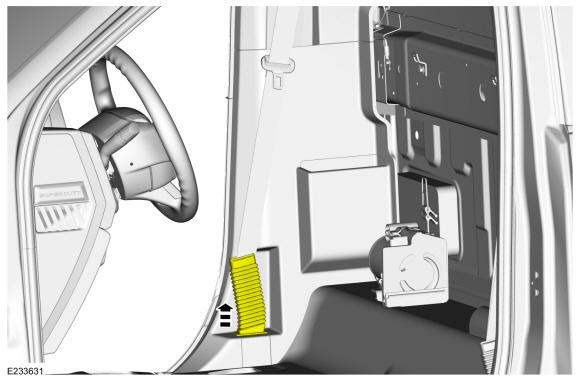

Disengage the seatbelt pretensioner boot from the pretensioner bezel.

Courtesy of FORD MOTOR COMPANY

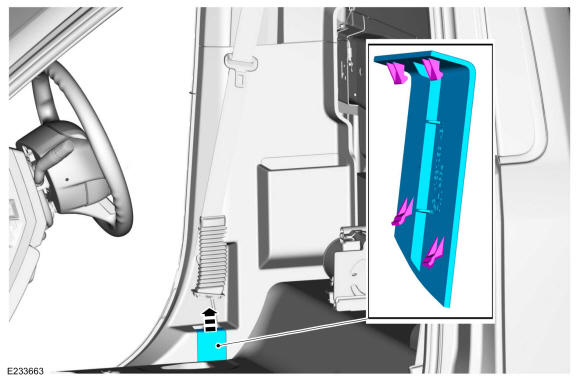

Remove the pretensioner bezel.

Courtesy of FORD MOTOR COMPANY

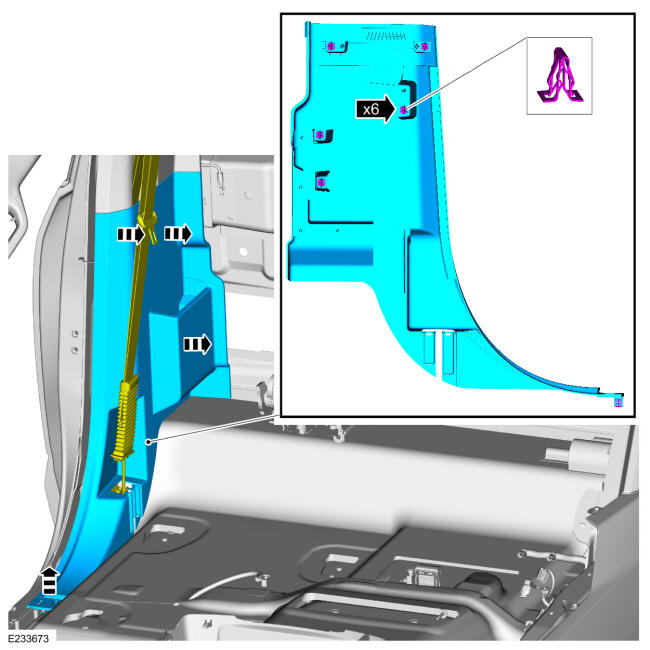

Release the clips and remove the B-pillar lower trim panel.

Courtesy of FORD MOTOR COMPANY

Upper B-Pillar Trim Panel

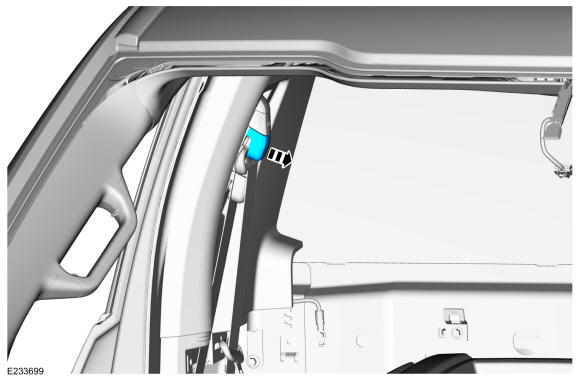

Remove the D-ring bolt cover.

Courtesy of FORD MOTOR COMPANY
Remove the D-ring bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

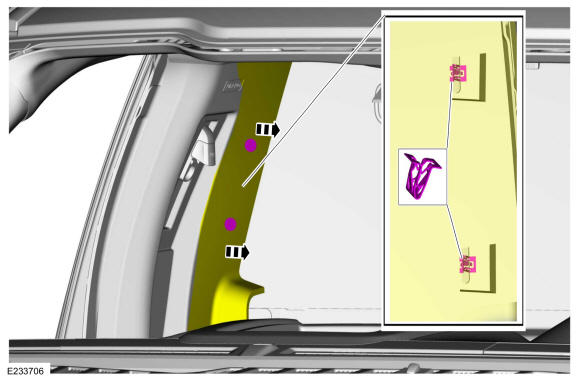

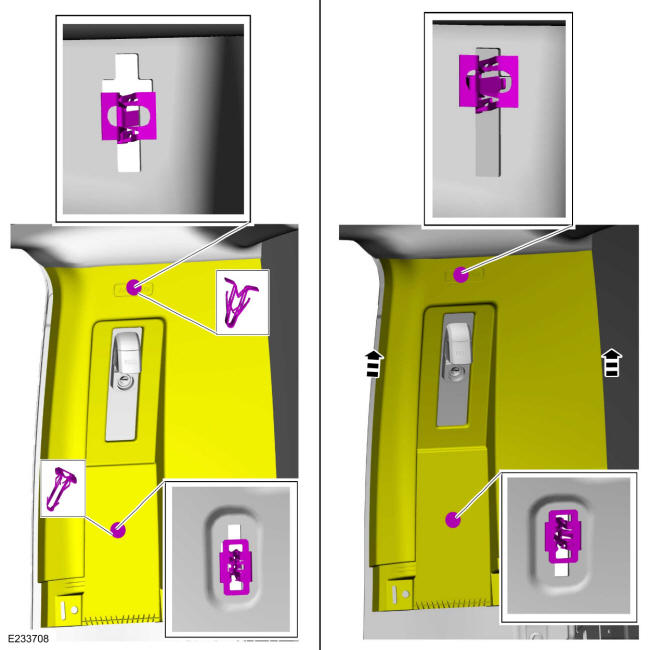

Release the clips.

Courtesy of FORD MOTOR COMPANY
NOTE: The trim panel must be positioned upward to allow the upper clip to release correctly. Failure to follow this may cause damage to the trim panel.

Slide the trim panel upward, aligning the clips to the slots in the sheet metal.

Courtesy of FORD MOTOR COMPANY

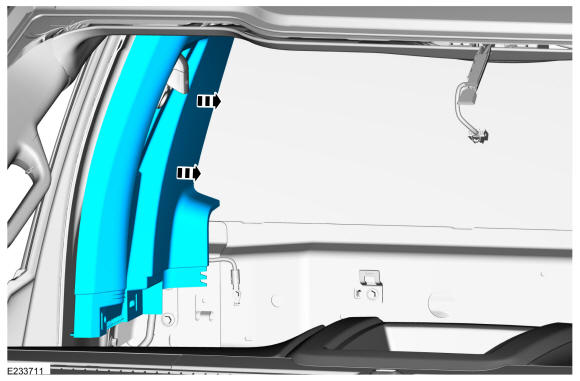

Remove the upper B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
