A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: RH side shown, LH side similar.

NOTE: Removal steps in this procedure may contain installation details.

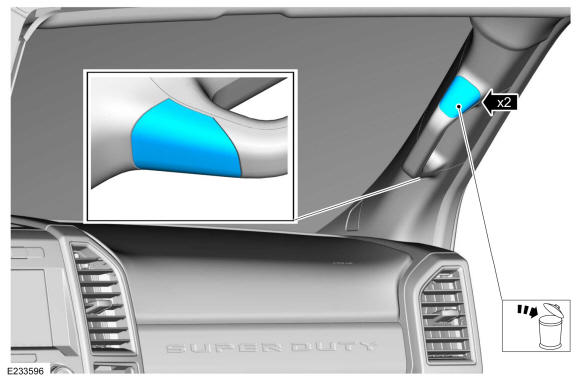

Remove and discard the assist handle bolt covers.

Courtesy of FORD MOTOR COMPANY

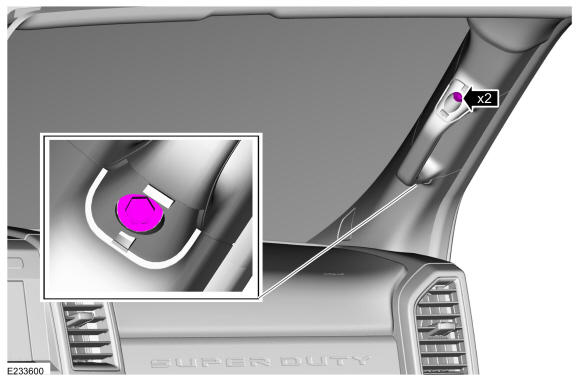

Remove the assist handle bolts.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

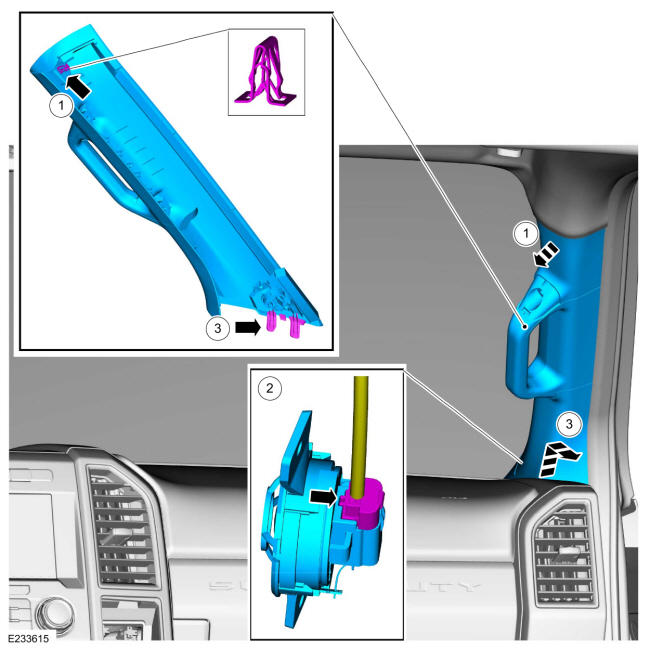

Remove the A-pillar trim panel.
1. Release the clip.
2. If equipped. Disconnect the speaker electrical connector.
3. Lift up and outward and release the lower tabs.

Courtesy of FORD MOTOR COMPANY
