Steering Column Tilt Motor: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the steering column. Refer to: Steering Column .

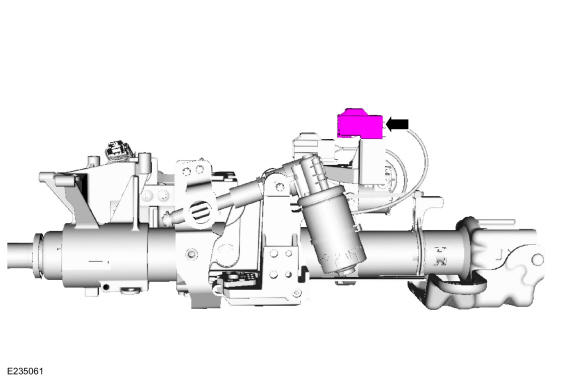

Detach the tilt motor electrical connector retainer from the steering column.

Courtesy of FORD MOTOR COMPANY

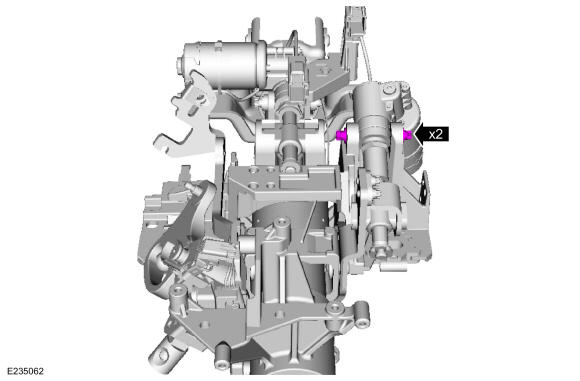

Remove the tilt motor screws.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphics for this step in the installation.

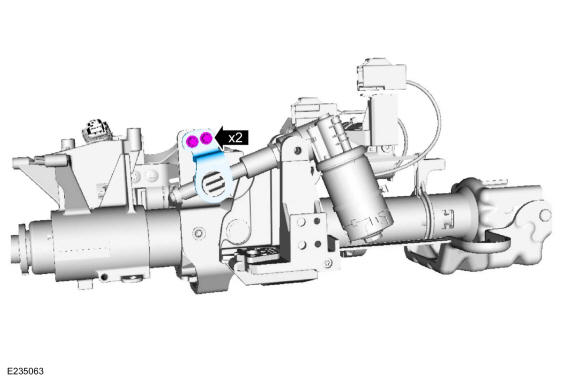

Remove the screws and the trunnion nut capture bracket.

Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphics for this step in the installation.

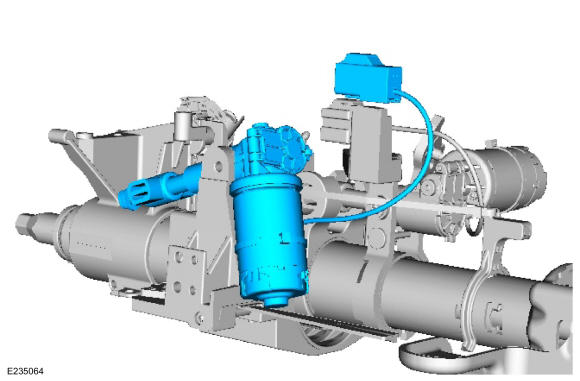

Remove the tilt motor.

Courtesy of FORD MOTOR COMPANY
