Removal And Installation: Hood: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

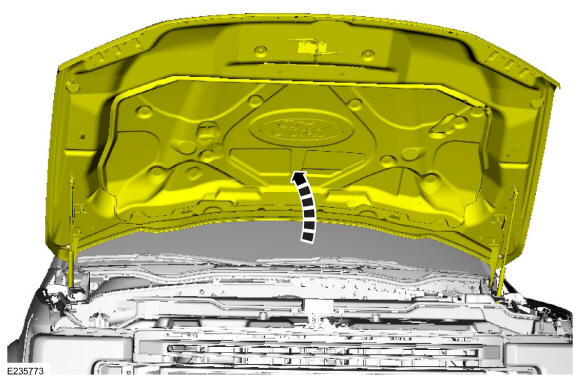

Open the hood.

Courtesy of FORD MOTOR COMPANY

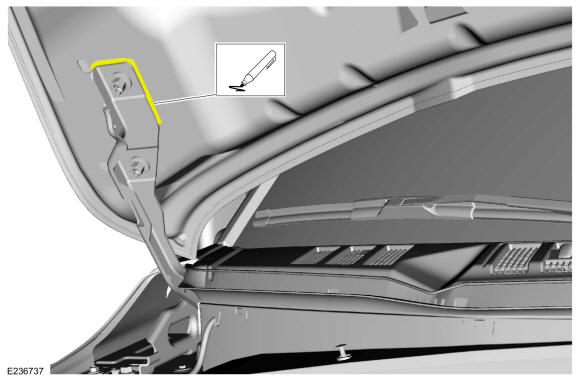

On both sides. Index-mark the hood hinge location to aid in hood installation.

Courtesy of FORD MOTOR COMPANY

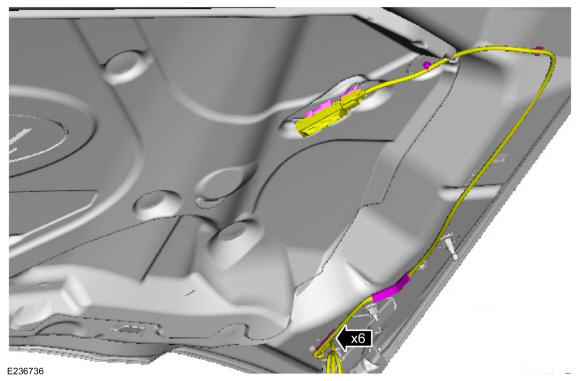

Release the retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

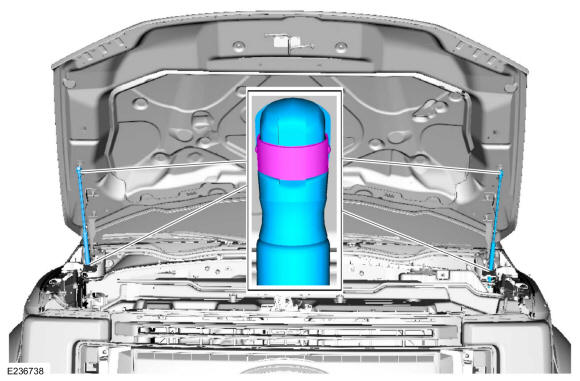

NOTE: Support the hood before removing the strut. Failure to follow this direction may result in damage to the components.

Release the clips and remove the struts.

Courtesy of FORD MOTOR COMPANY

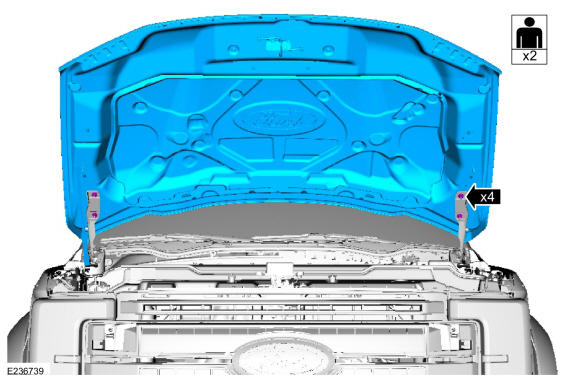

NOTE: An assistant is necessary for the removal of the hood.

Remove the nuts and the hood.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

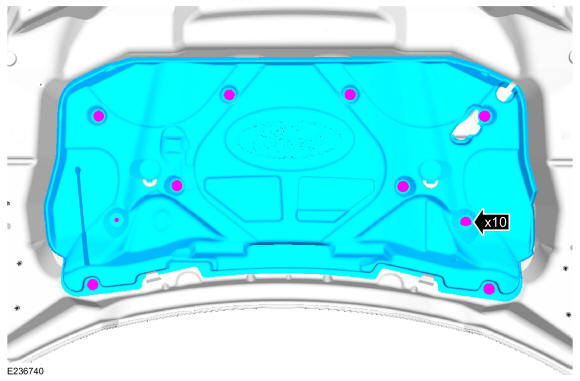

NOTE: This step is only necessary when installing a new component.

Remove the pin-type retainers and hood insulation.

Courtesy of FORD MOTOR COMPANY

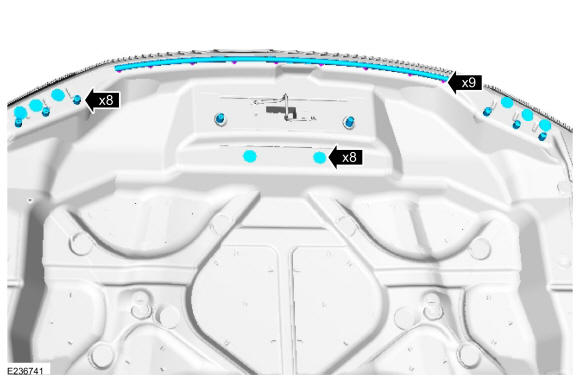

NOTE: This step is only necessary when installing a new component.
- Remove the mylar tape.
- Remove the rubber bumpers.
- Remove the pin-type retainers and the hood pad.
Courtesy of FORD MOTOR COMPANY

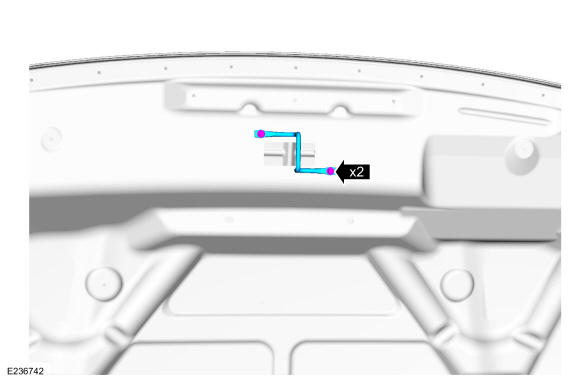

NOTE: This step is only necessary when installing a new component.

Remove the bolts and the striker.

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
