Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Remove the fender splash shield. Refer to: Fender Splash Shield .
Remove the front fender moulding. Refer to: Front Fender Moulding - F-450/F-550 .

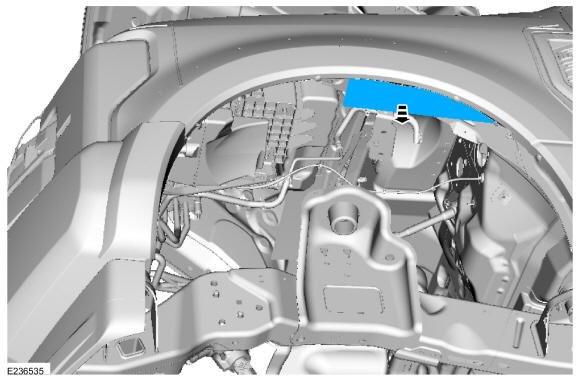

Remove the fender insulator.

Courtesy of FORD MOTOR COMPANY

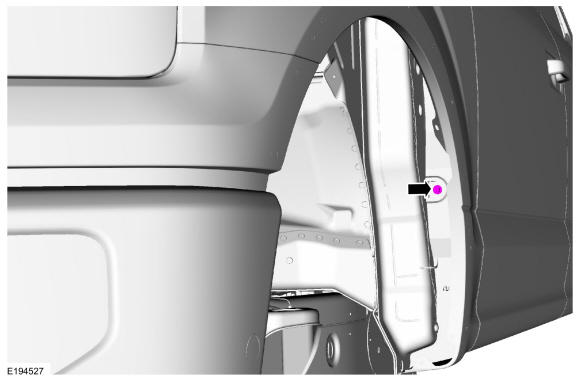

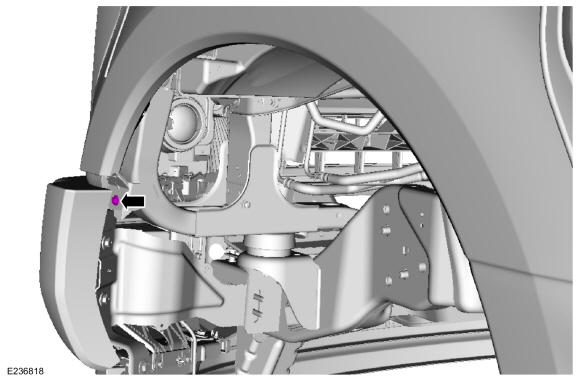

Remove the bolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

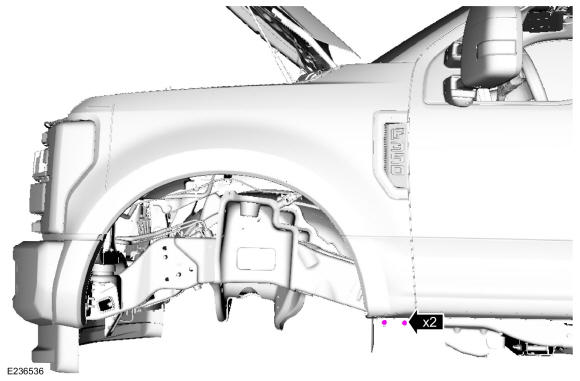

Remove the bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

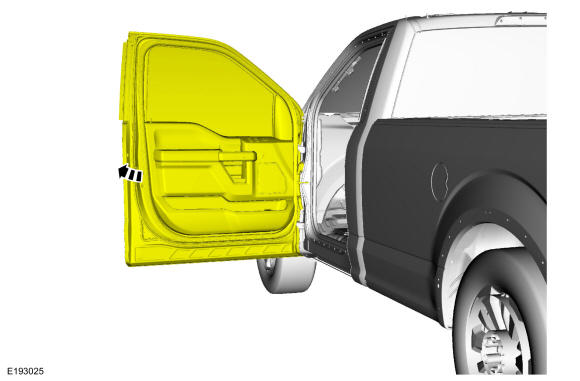

Open the door.

Courtesy of FORD MOTOR COMPANY

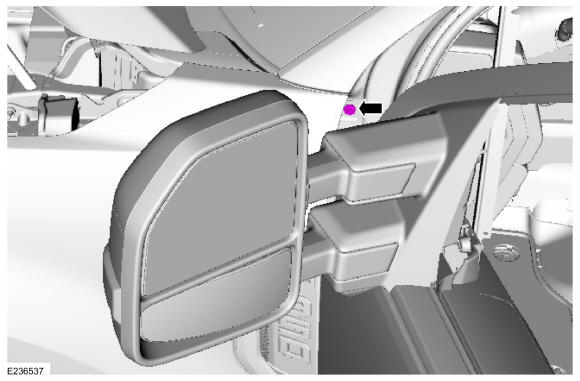

Remove the bolt.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

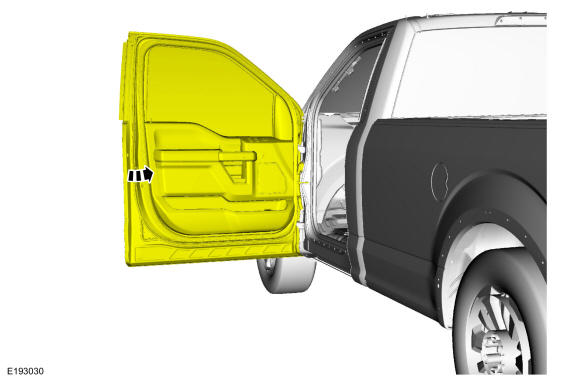

Close the door.

Courtesy of FORD MOTOR COMPANY

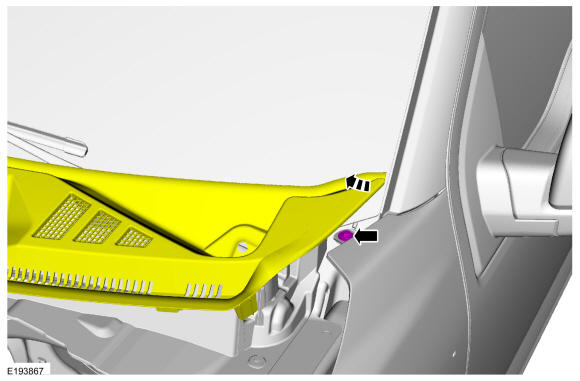

Lift the corner of the cowl panel grille upward and remove the bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the headlamp assembly. Refer to: Headlamp Assembly .
Remove the bolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphic for this step in the installation.

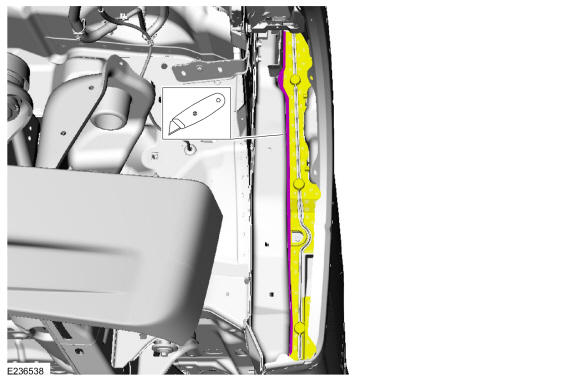

Cut the foam sealant between the expandable foam baffle and the body. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY

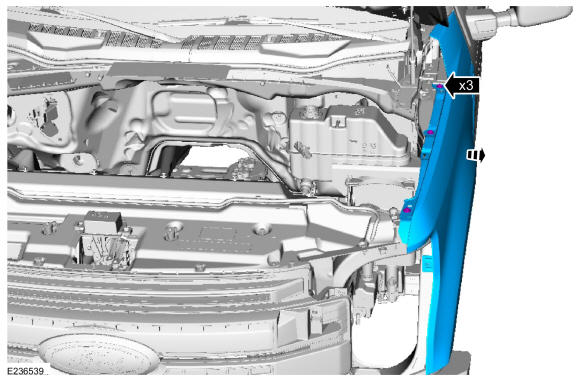

Remove the bolts and the fender.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

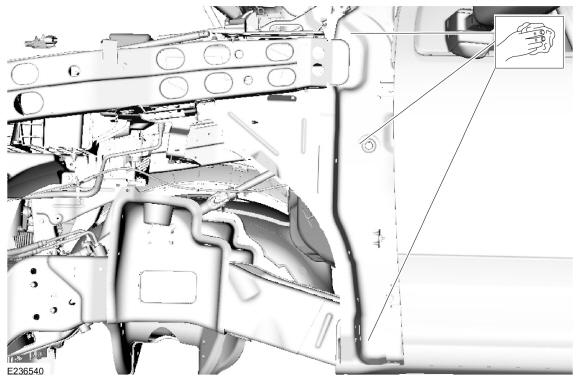

Remove any excess debris left on the body.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

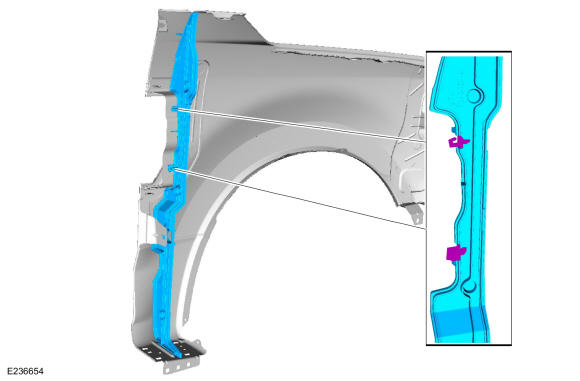

Release the clips and remove the expandable foam baffle.

Courtesy of FORD MOTOR COMPANY
