Removal And Installation: Fender: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

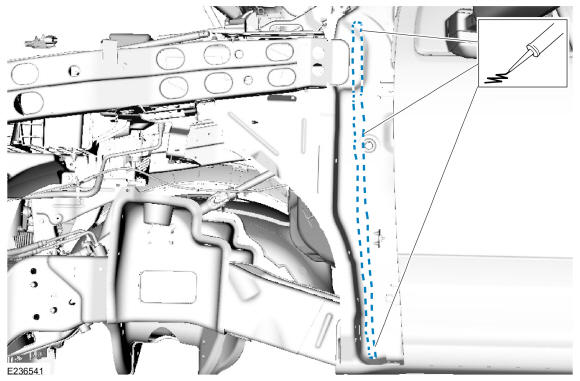

  2. Apply a continuous stream of Fusor® 121 material along the entire span of the baffle-body attachment area.

    Material: Flexible Foam Repair / 3M™ 08463, LORD Fusor® 121

GFD410425Courtesy of FORD MOTOR COMPANY
