Fender Splash Shield: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels .
  2. Remove the wheel and tire. Refer to: Front Fender Moulding - F-450/F-550 .

    For F250/350

  3. NOTE: LH shown, RH similar.

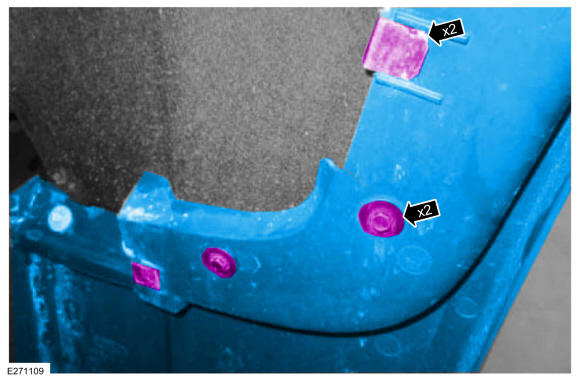

    If equipped with mud flaps. Remove the mud flaps.

    GFD410426Courtesy of FORD MOTOR COMPANY

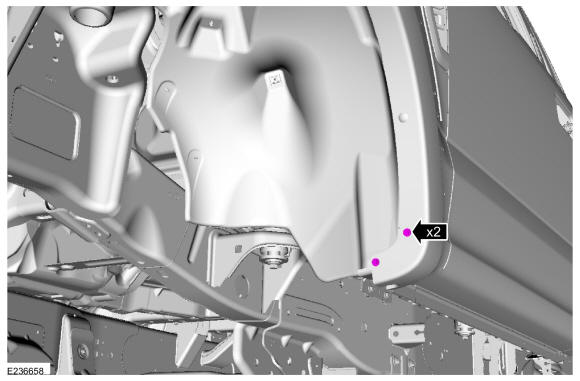

  4. Remove the bolts.
    GFD410427Courtesy of FORD MOTOR COMPANY

    All vehicles

  5. NOTE: LH shown, RH similar

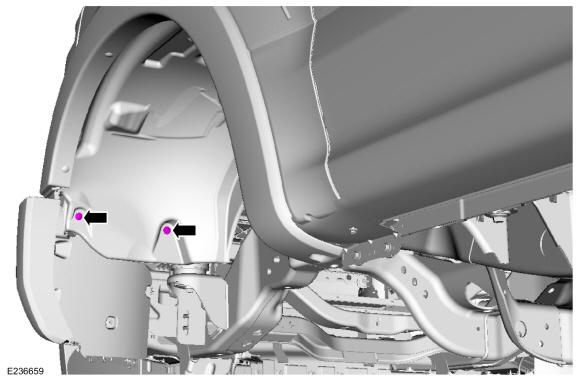

    Remove the bolt and the pin-type retainer.

    GFD410428Courtesy of FORD MOTOR COMPANY
  6. NOTE: LH shown, RH similar

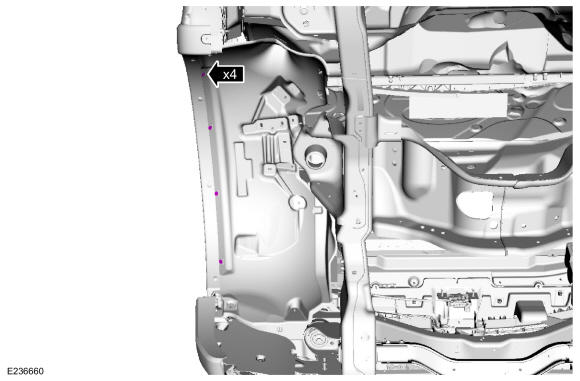

    Remove the bolts.

    GFD410429Courtesy of FORD MOTOR COMPANY

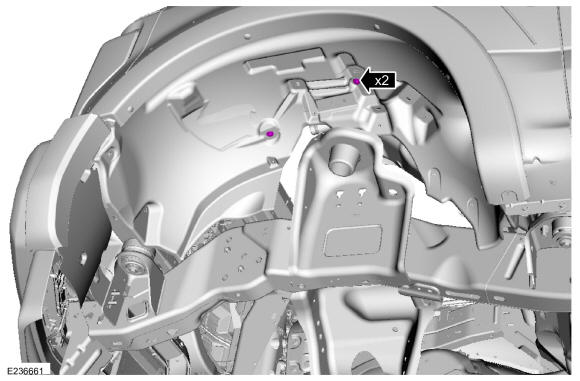

  7. LH side. Remove the bolts.
    GFD410430Courtesy of FORD MOTOR COMPANY
  8. NOTE: LH shown, RH similar

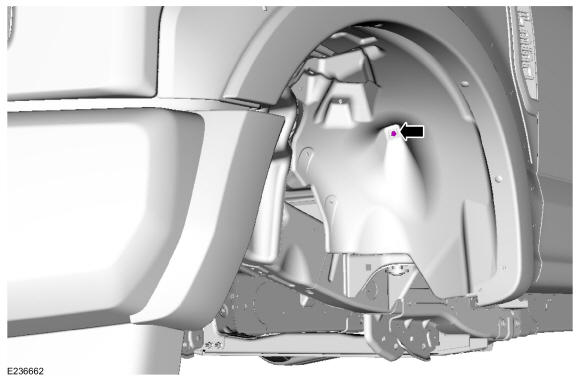

    Remove the nut.

    GFD410431Courtesy of FORD MOTOR COMPANY

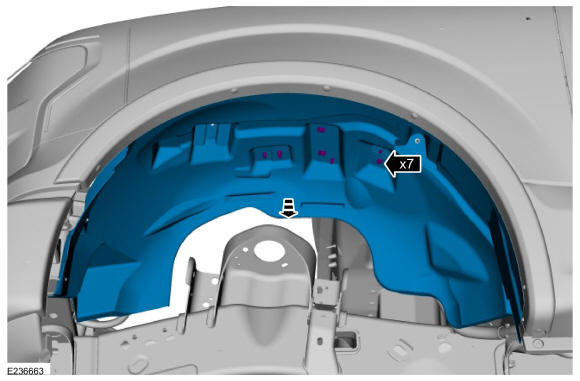

  9. Release the wiring harness retainers and remove the LH fender splash shield.
    GFD410432Courtesy of FORD MOTOR COMPANY

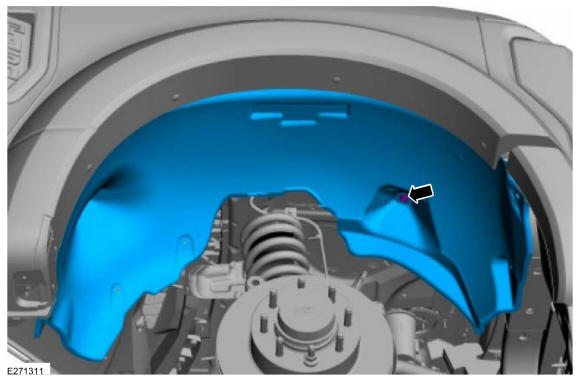

  10. Remove the RH fender splash shield.
GFD410433Courtesy of FORD MOTOR COMPANY
