Cowl Panel: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Remove the cowl panel grille. Refer to: Cowl Panel Grille .

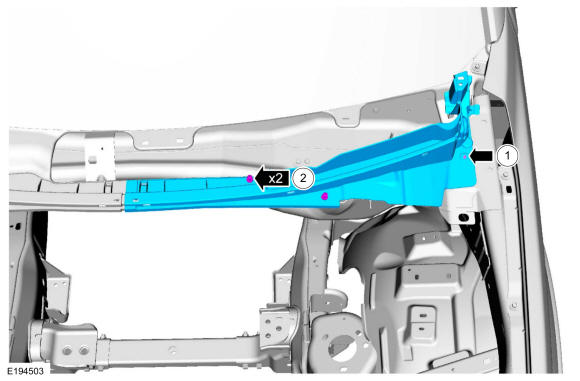

1. Remove the screw.
2. Remove the pin-type retainers and the LH cowl panel.
Courtesy of FORD MOTOR COMPANY

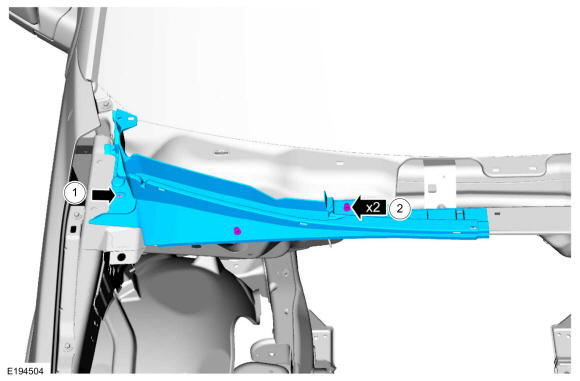

1. Remove the screw.
2. Remove the pin-type retainers and the RH cowl panel.

Courtesy of FORD MOTOR COMPANY
