Cowl Panel Grille: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the wiper pivot arm. Refer to: Windshield Wiper Pivot Arm
.
RH side and LH side

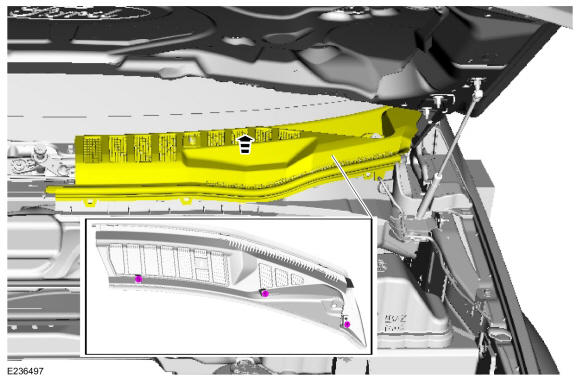

- Lift the cowl trim panel upward to release the retainers.

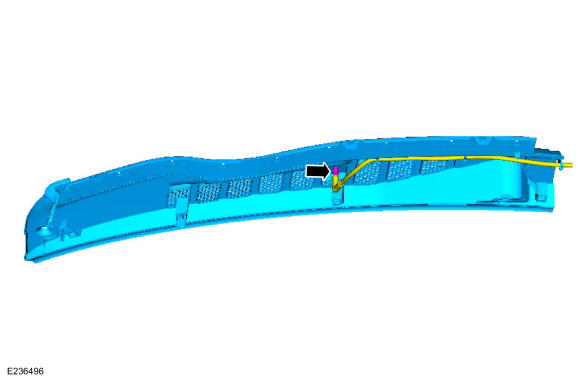

- Disconnect the windshield washer tube and remove the cowl panel grille.
LH side

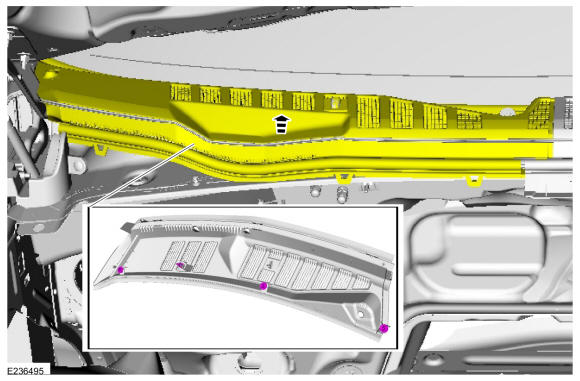

- Lift the cowl trim panel upward to release the retainers.

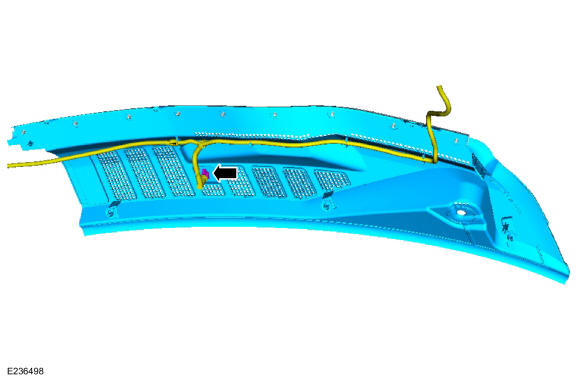

- Disconnect the windshield washer tube and remove the cowl panel grille.
