Wheel and Tire - Vehicles With: Dual Rear Wheels: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Typical wheel cover shown, others may vary by application.

If equipped. Remove the wheel cover.

Courtesy of FORD MOTOR COMPANY
Check the torque for all of the wheel nuts. If any wheel nuts have a torque above 312 Nm (230 lb-ft), install all new wheel studs on that wheel hub. For additional information, Refer to the appropriate Suspension article for the procedure.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Do not use heat to loosen a seized wheel nut or damage to the wheel and wheel bearing can occur.

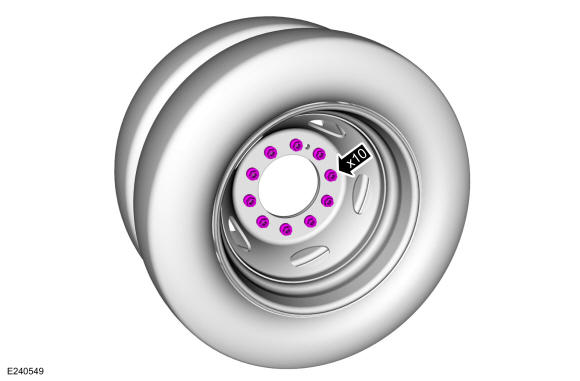

NOTE: 10 lug wheel shown, 8 lug similar.

Remove the wheel nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: On vehicles equipped with 19.5-in and larger wheels, use Rotunda Heavy Duty Wheel Dolly 014-00030 or equivalent to aid in the removal of the wheel and tire assemblies.

Remove the outer and inner wheel and tire assemblies.

Courtesy of FORD MOTOR COMPANY
