Mid-Level IPC
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

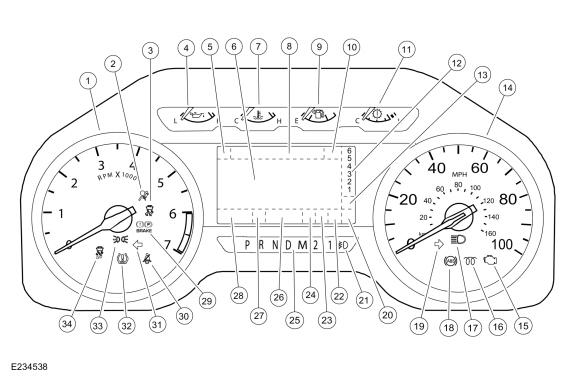

Mid-Level IPC
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Airbag warning indicator |
| 3 | Stability-traction control indicator (sliding car icon) |
| 4 | Oil pressure gauge |
| 5 | Main menu navigation icon |
| 6 | Main menu display area |
| 7 | Engine temperature gauge |
| 8 | Sub-menu display area |
| 9 | Fuel gauge |
| 10 | Compass |
| 11 | Transmission temperature gauge |
| 12 | Manual shift mode, progressive range select and SelectShift® display |
| 13 | Cruise control set speed RTT indicator |
| 14 | Speedometer |
| 15 | MIL |
| 16 | Wait to start indicator (diesel only) |
| 17 | High beam indicator |
| 18 | ABS indicator |
| 19 | RH turn indicator |
| 20 | Cruise control RTT indicator |
| 21 | Front fog lamp RTT indicator |
| 22 | 4WD (2H, 4L and 4H) RTT indicator |
| 23 | ELDRTT indicator |
| 24 | Diesel exhaust fluid level RTT indicator (diesel only) |
| 25 | PRNDL display |
| 26 | Rotating RTT display area Adaptive steering Blind Spot Information System (BLIS®) disabled Charging system DPF auto regeneration (diesel only) Door ajar warning Engine over-temperature warning Hill descent control Hood ajar warning Low engine oil pressure warning Low fuel Low washer fluid level Powertrain malfunction (wrench) Tow haul Water in fuel (diesel only) |
| 27 | Engine brake RTT indicator (diesel only) |
| 28 | Odometer |
| 29 | Brake warning indicator |
| 30 | Seatbelt warning indicator Brake warning indicator |
| 31 | LH turn indicator |
| 32 | TPMS indicator |
| 33 | Lights on indicator |
| 34 | Stability-traction control disabled indicator (sliding car OFF icon) |
