High-Level IPC
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

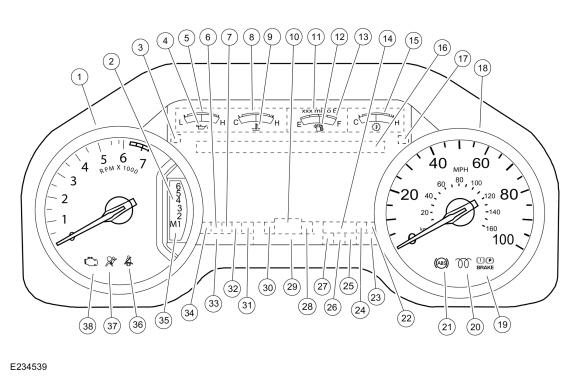

High-Level IPC
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Progressive range select/select shift display |
| 3 | LH turn indicator |
| 4 | Low engine oil pressure warning RTT indicator |
| 5 | Virtual engine oil pressure gauge |
| 6 | Engine brake RTT indicator (diesel only) |
| 7 | Stability-traction control indicator or RTT indicator (sliding car icon) |
| 8 | Virtual engine temperature gauge |
| 9 | Engine over-temperature warning RTT indicator |
| 10 | Cruise control and set speed display (non-ACC) ACC and lane keeping system display |
| 11 | DTE display |
| 12 | Low fuel RTT indicator |
| 13 | Virtual fuel gauge |
| 14 | Rotating RTT display area AFS BLIS off Charging system DPF auto regeneration (diesel only) Door ajar warning ELD Hill descent Hood ajar warning Low washer fluid level Powertrain malfunction (wrench) Overspeed warning (Gulf Coast Countries [GCC] only) Water in fuel (diesel only) |
| 15 | Configurable virtual gauge Transmission temperature gauge Turbo boost gauge |
| 16 | Main menu tabbed navigation |
| 17 | RH turn indicator |
| 18 | Speedometer |
| 19 | Brake warning indicator |
| 20 | Wait to start indicator (diesel only) |
| 21 | ABS indicator |
| 22 | Front fog lamp RTT |
| 23 | Compass |
| 24 | Diesel exhaust fluid level RTT indicator |
| 25 | Lights on RTT indicator |
| 26 | Auto high beam RTT indicator |
| 27 | TPMSRTT indicator |
| 28 | ACC set speed |
| 29 | PRNDL display area |
| 30 | ACCRTT indicator |
| 31 | High beam indicator |
| 32 | Stability-traction control disabled indicator or RTT indicator (sliding car OFF icon) |
| 33 | Odometer |
| 34 | 4WD (2H, 4L and 4H) RTT indicator |
| 35 | Tow haul RTT |
| 36 | Seatbelt warning indicator |
| 37 | Airbag warning indicator |
| 38 | MIL |
