Base IPC
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

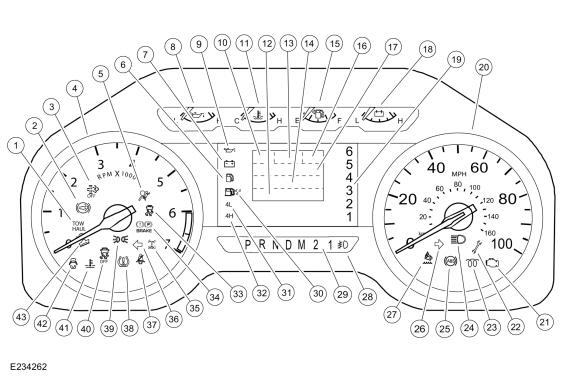

Base IPC
| Item | Description |
|---|---|
| 1 | Tow haul indicator |
| 2 | Engine brake indicator |
| 3 | DPF auto regeneration (diesel only) |
| 4 | Tachometer |
| 5 | Airbag warning indicator |
| 6 | Low fuel indicator |
| 7 | Charging system warning indicator |
| 8 | Oil pressure gauge |
| 9 | Low oil pressure warning indicator |
| 10 | Upshift RTT indicator (manual transmission) |
| 11 | Engine temperature gauge |
| 12 | Odometer display area |
| 13 | Cruise control RTT indicator |
| 14 | Trip computer display area (may also use the cruise control display area as needed) |
| 15 | Fuel gauge |
| 16 | Compass display |
| 17 | Cruise control and set speed display area (may also use the trip computer and odometer display areas as needed) |
| 18 | Charging system gauge |
| 19 | Progressive range select/select shift display |
| 20 | Speedometer |
| 21 | MIL |
| 22 | Powertrain malfunction (wrench) indicator |
| 23 | Wait to start indicator |
| 24 | High beam indicator |
| 25 | ABS indicator |
| 26 | RH turn indicator |
| 27 | Diesel exhaust fluid level indicator |
| 28 | Front fog lamp indicator |
| 29 | PRNDL display |
| 30 | Water in fuel indicator |
| 31 | 4x4 low indicator |
| 32 | 4x4 high indicator |
| 33 | Stability-traction control indicator (sliding car icon) |
| 34 | Brake warning indicator |
| 35 | ELD indicator |
| 36 | LH turn indicator |
| 37 | Seatbelt warning indicator |
| 38 | TPMS indicator |
| 39 | Lights on indicator |
| 40 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 41 | Engine over-temperature warning indicator |
| 42 | Door ajar warning indicator |
| 43 | Hill descent control indicator |
