Brake Vacuum Pump: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling fan drive assembly. Refer to: Cooling Fan Drive Assembly .

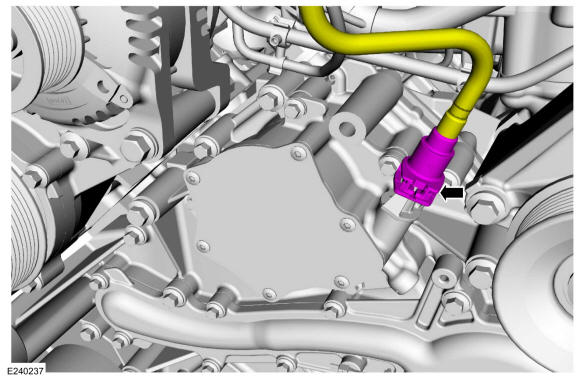

- Disconnect the vacuum hose.

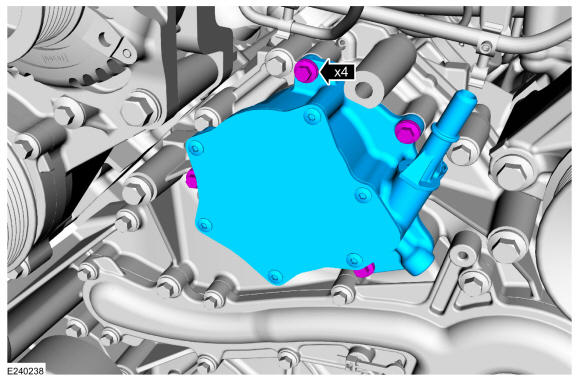

- Remove the bolts and the brake vacuum pump.
Torque: 89 lb.in (10 Nm)

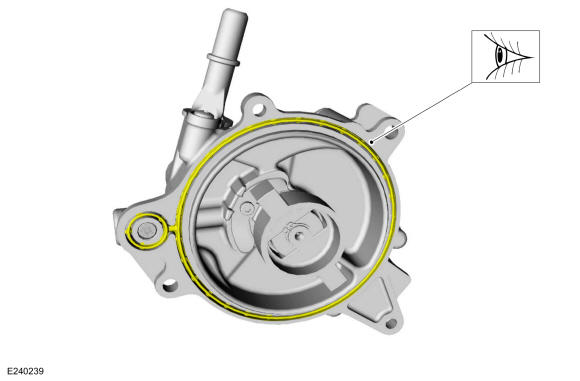

- Inspect the gasket and install a new gasket as necessary.
