Brake Pedal Control Switch: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

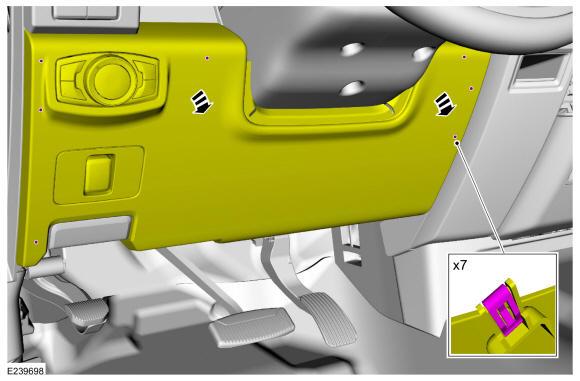

  1. Detach the clips and lower the steering column opening trim panel.
    GFD405341Courtesy of FORD MOTOR COMPANY

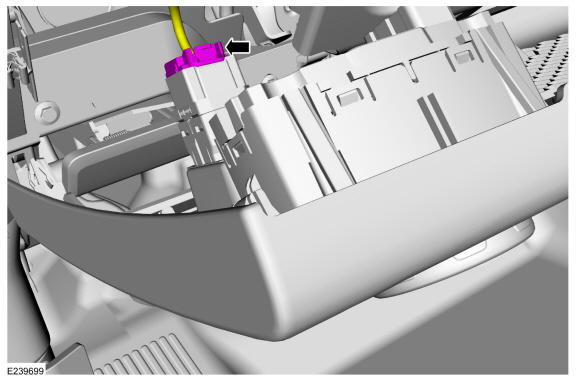

  2. Disconnect the brake pedal control switch electrical connector.
    GFD405352Courtesy of FORD MOTOR COMPANY

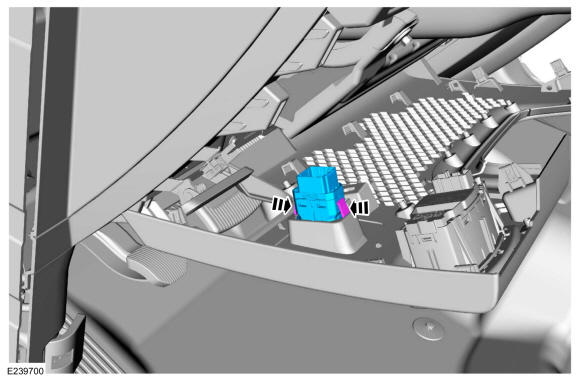

  3. Push inward on the tabs and remove the brake pedal control switch.
GFD405353Courtesy of FORD MOTOR COMPANY
