Brake Master Cylinder - Vehicles With: Hydro-Boost: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

If equipped with a secondary battery, remove the secondary battery tray. Refer to: Battery Tray .

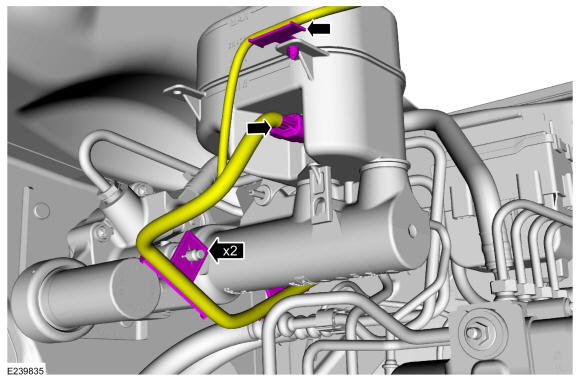

Disconnect the brake fluid level sensor electrical connector and detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

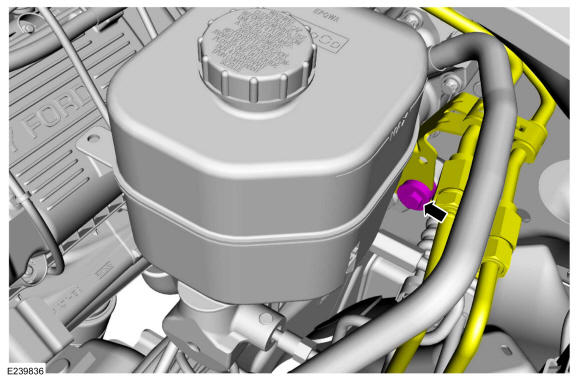

Remove the bolt and position the power steering lines and bracket aside.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

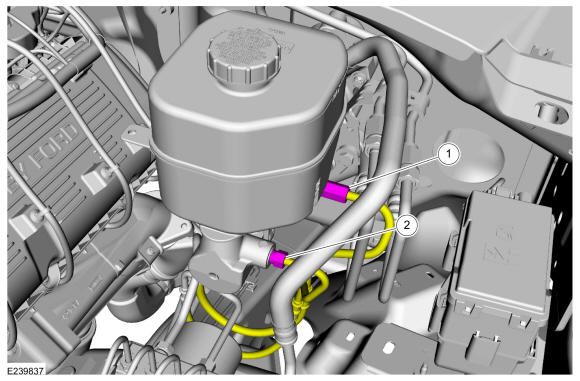

1. Disconnect the primary brake tube fitting.
  Torque: 22 lb.ft (30 Nm)
2. Disconnect the secondary brake tube fitting.
  Torque: 16 lb.ft (22 Nm)
Courtesy of FORD MOTOR COMPANY

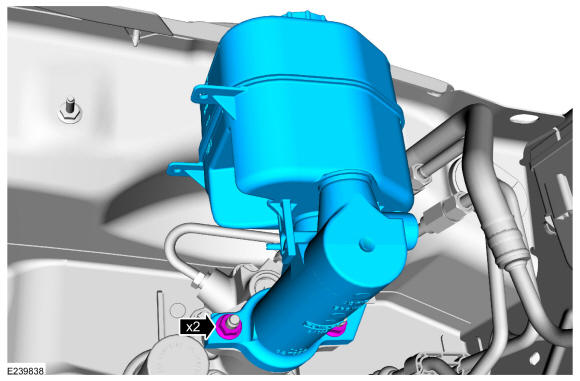

Remove the nuts and the brake master cylinder.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
