Rear Brake Caliper Support Bracket: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the parking brake shoes. Refer to: Parking Brake Shoes
.
Vehicles with single rear wheels (SRW)
- Remove the wheel hub. Refer to: Wheel Hub
.
Refer to: Wheel Hub
.
All vehicles

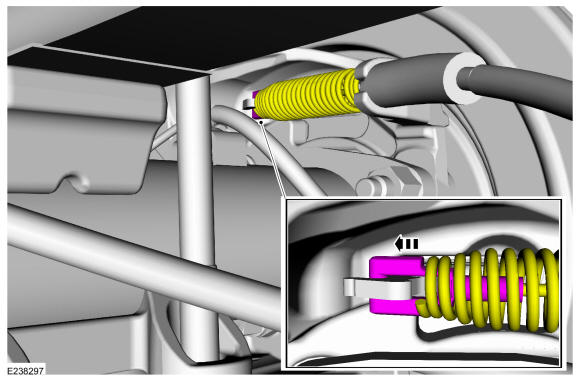

- Disconnect the parking brake cable from the parking brake shoe actuator lever.

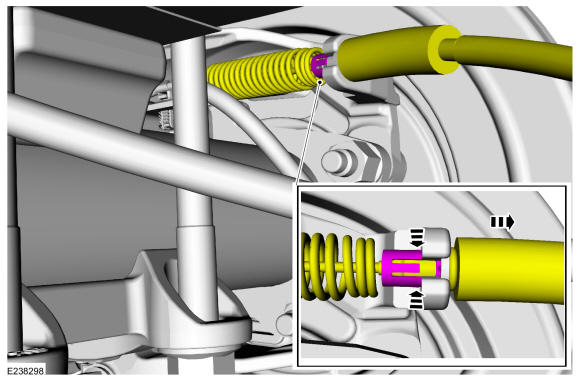

- Disconnect the parking brake cable from the support bracket.
F250, F350

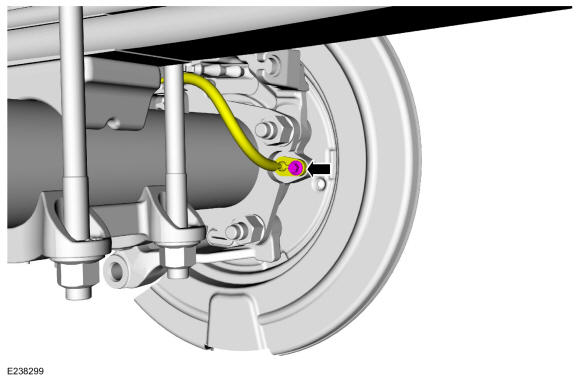

- Remove the bolt and position the wheel speed sensor aside.
Torque: 177 lb.in (20 Nm)

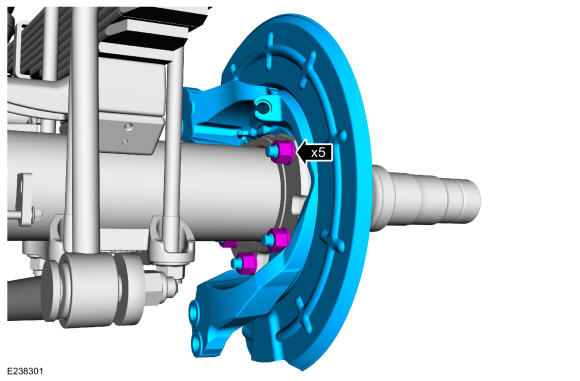

- Remove the nuts and the brake caliper support bracket.
Torque: 101 lb.ft (137 Nm)
F450, F550

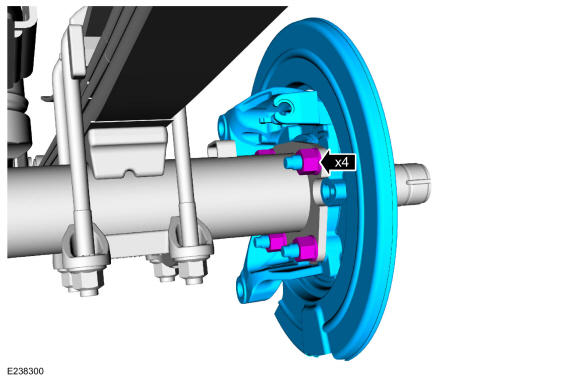

- Remove the nuts and the brake caliper support bracket.
Torque: 101 lb.ft (137 Nm)
