Parking Brake Shoes: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicle with single rear wheels (SRW) shown. The wheel hub is removed from illustrations for clarity. It is not necessary to remove the wheel hub.
- Release the parking brake cable tension. Refer to: Parking Brake Cable Tension Release .
- Remove the brake disc. Refer to: Brake Disc .
-

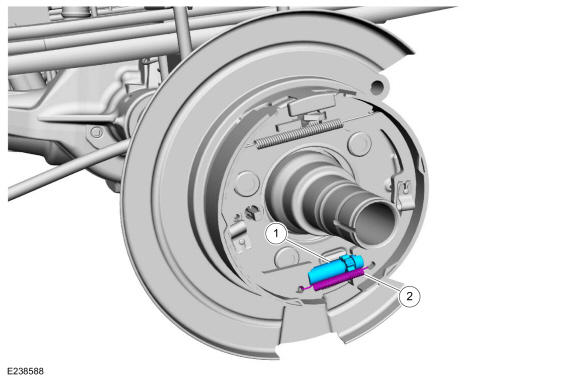

- Remove the parking brake shoe adjuster.

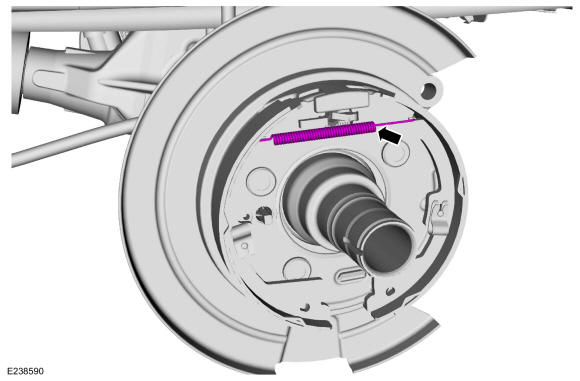

- Remove the spring.
- Remove the spring.

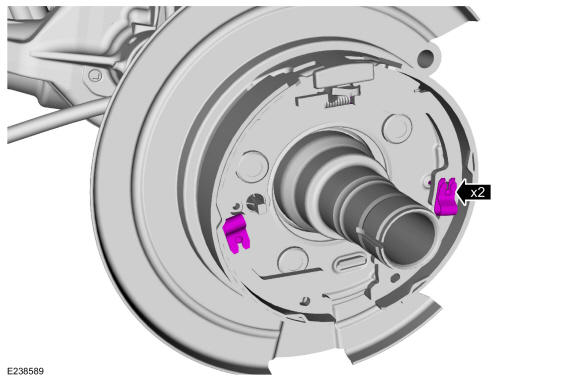

- Remove the parking brake shoe hold down springs and pins.

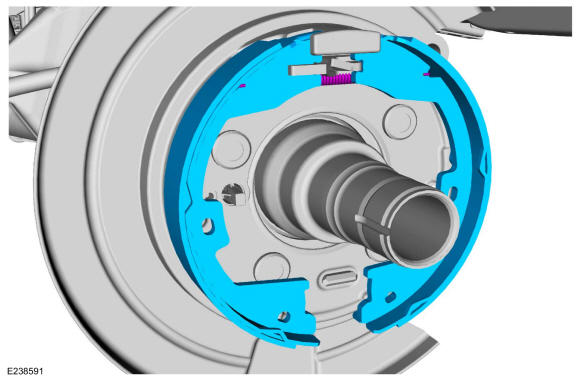

- Remove the spring and the parking brake shoes.

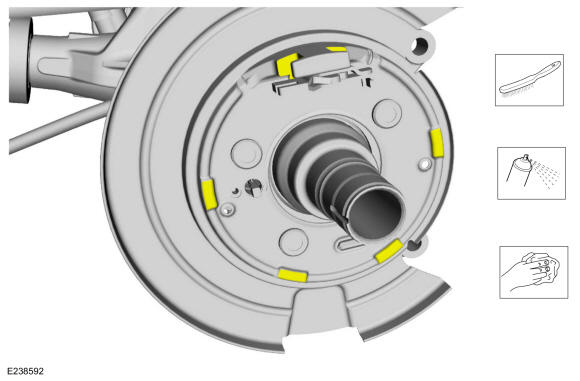

- Using wire brush and the specified cleaner, clean the parking brake shoe contact points.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

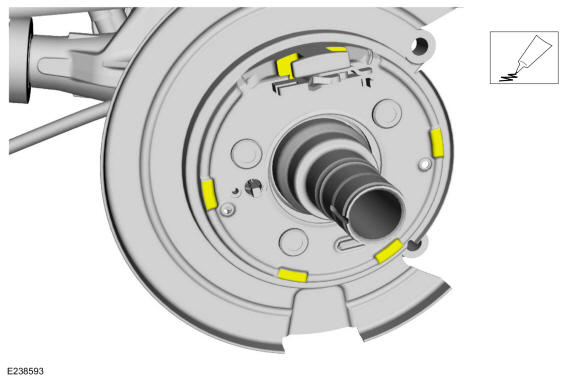

- Using specified grease, lubricate the parking brake shoe contact points.
Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
