Parking Brake Control: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Release the parking brake cable tension. Refer to: Parking Brake Cable Tension Release .

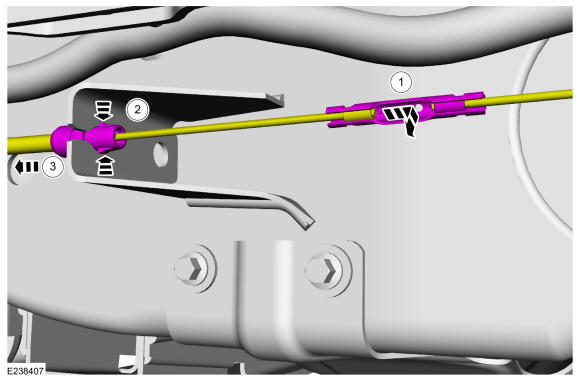

1. Disconnect the front parking brake cable from the cable union.
2. Release the tabs and detach the front parking brake cable.
Courtesy of FORD MOTOR COMPANY

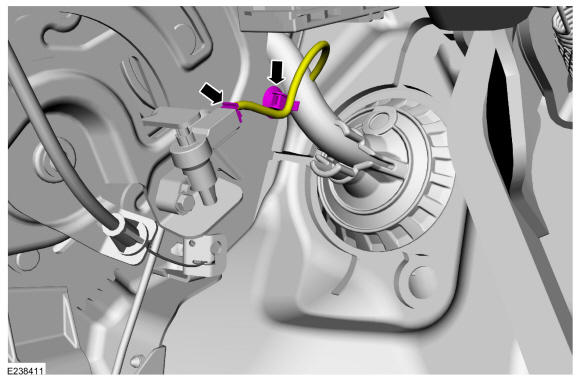

Disconnect the parking brake warning indicator switch electrical connector, detach the wiring retainer and position the wiring aside.

Courtesy of FORD MOTOR COMPANY
1. Detach the parking brake release handle cable end.
2. Release the tabs and position the parking brake release handle cable aside.
Courtesy of FORD MOTOR COMPANY
NOTE: Regular cab shown.

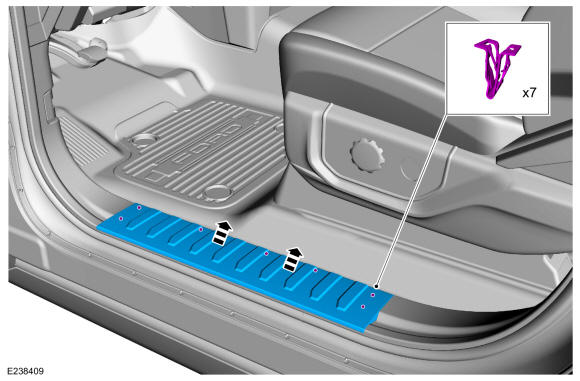

Detach the clips and remove the scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY

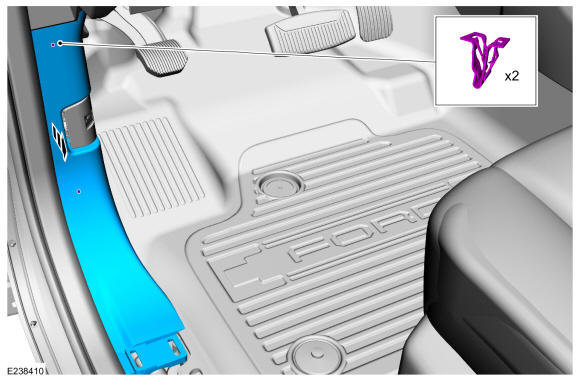

Detach the clips and remove the cowl side trim panel.

Courtesy of FORD MOTOR COMPANY

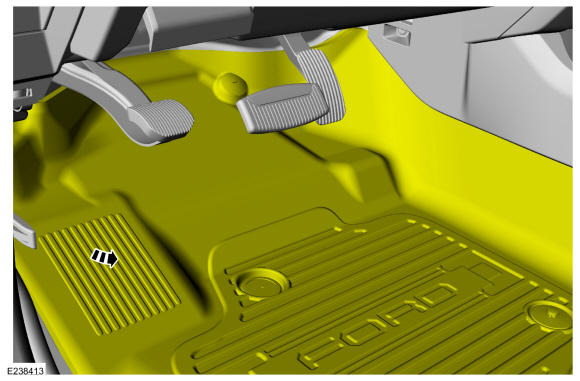

Carefully position the carpet and foam support back to access the front cable grommet.

Courtesy of FORD MOTOR COMPANY

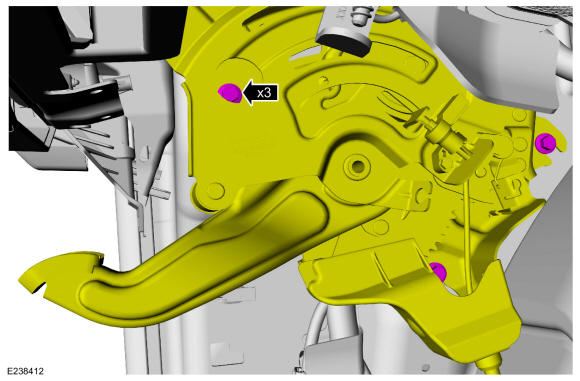

Remove the parking brake control bolts and position the parking brake control aside.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

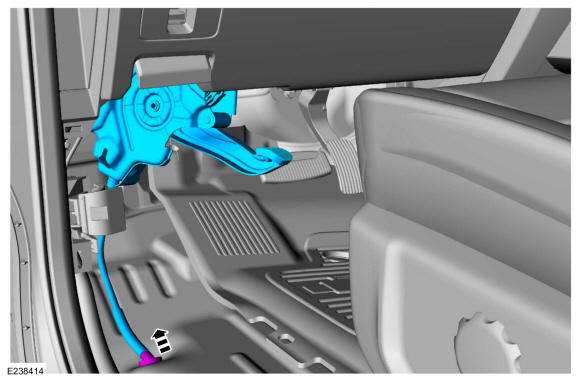

Detach the front cable grommet from the floor and remove the front parking brake cable and parking brake control as an assembly.

Courtesy of FORD MOTOR COMPANY

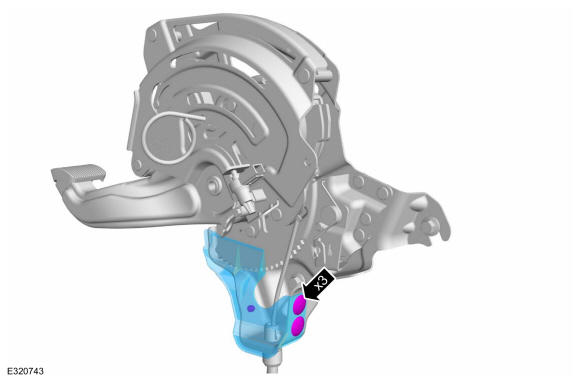

Remove the pin-type retainers and the cover.

Courtesy of FORD MOTOR COMPANY

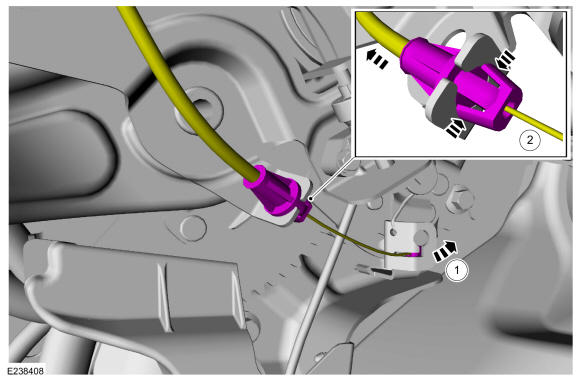

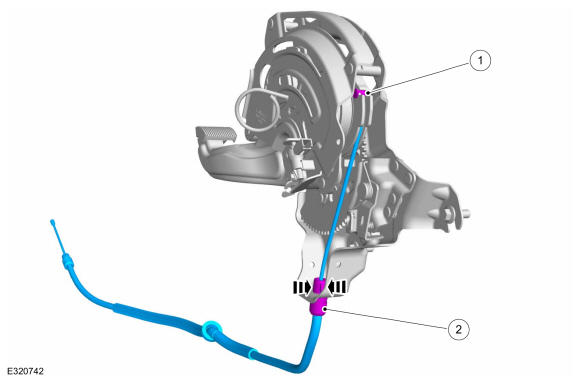

1. Rotate the cable upwards and pull the cable end out of the parking brake control.
2. Press inward on the 2 cable retainer tabs and remove the front parking brake cable.
