Transfer Case Rear Seal - Vehicles With: Flanged Yoke: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with a flange style yoke

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

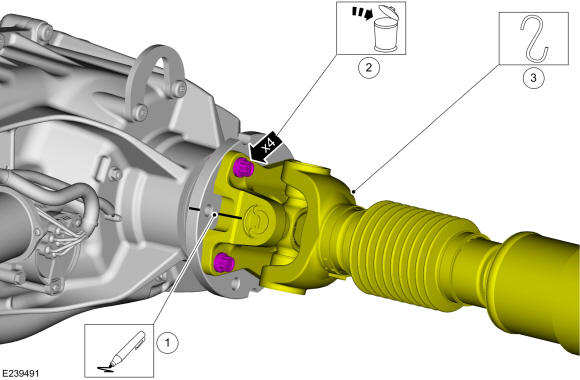

Disconnect the driveshaft.
- Index mark the driveshaft and output shaft flange.
- Remove and discard the driveshaft to output flange bolts.
- Disconnect and support the driveshaft.
Courtesy of FORD MOTOR COMPANY

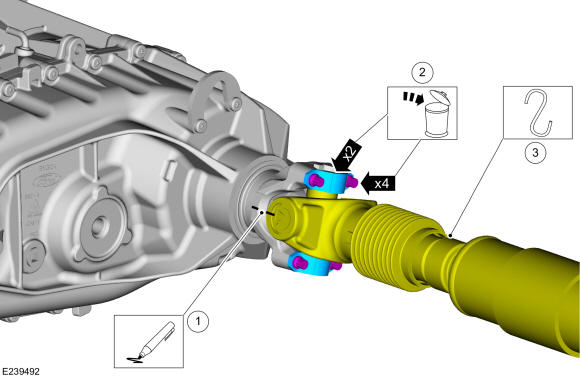

Vehicles equipped with a U-joint strap style yoke
Disconnect the driveshaft.
- Index mark the driveshaft and output shaft.
- Remove and discard the driveshaft to output flange bolts.
- Disconnect and support the driveshaft.
Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Flange style yoke shown, U-Joint strap style yoke similar.

Using the special tool, remove and discard the pinion flange nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

Courtesy of FORD MOTOR COMPANY
Remove the output flange washer.

Courtesy of FORD MOTOR COMPANY
Remove the output flange.

Courtesy of FORD MOTOR COMPANY

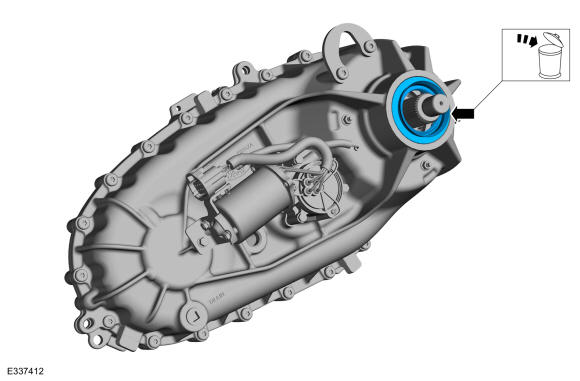

Remove the rear output shaft seal.

Courtesy of FORD MOTOR COMPANY
