Ride Height Measurement

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Check

Ride Height Measurement - Front

NOTE: Make sure that the vehicle is positioned on a flat, level surface.

Jounce front and rear suspension vigorously to allow the vehicle to settle.
Before measuring ride height check:
- Tires are inflated to the correct pressure.
- Vehicle should have at least one-half tank of fuel.
- All fluids at proper levels.
- No cargo inside the cab or bed.
- Inspect for aftermarket equipment. Check for aftermarket changes to the steering, suspension, wheel and tire components (such as competition, heavy duty, etc.).
NOTE: F-250 and F-350, Rear Wheel Drive (RWD)

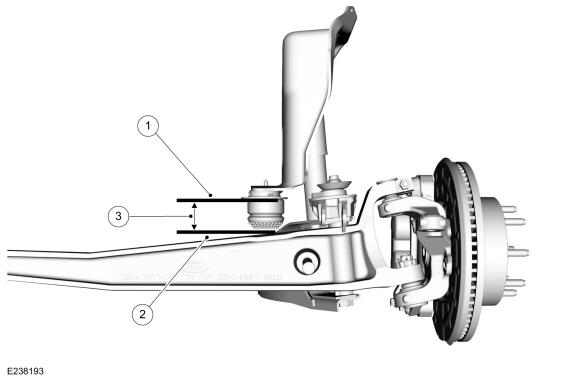

1. Bottom surface of the jounce bumper cup (measurement point 1)
2. Top of I-beam axle (measurement point 2)
3. Ride height = distance between measurement point 1 and measurement point 2
Courtesy of FORD MOTOR COMPANY
NOTE: F-250 and F-350, Four-Wheel Drive (4WD), F-450 and F-550

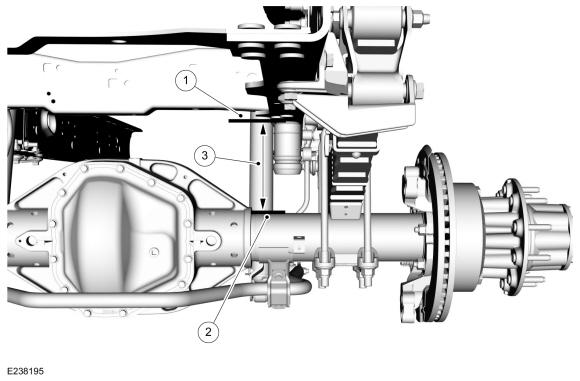

1. Bottom surface of the jounce bumper cup (measurement point 1)
2. Top surface of the jounce bumper pad on the axle (measurement point 2)
3. Ride height = distance between measurement point 1 and measurement point 2
Courtesy of FORD MOTOR COMPANY

Ride Height Measurement - Rear
NOTE: Make sure that the vehicle is positioned on a flat, level surface.

Jounce front and rear suspension vigorously to allow the vehicle to settle.
Before measuring ride height check:
- Tires are inflated to the correct pressure.
- Vehicle should have at least one-half tank of fuel.
- All fluids at proper levels.
- No cargo inside the cab or bed.
- Inspect for aftermarket equipment. Check for aftermarket changes to the steering, suspension, wheel and tire components (such as competition, heavy duty, etc.).
NOTE: F-250 and F-350, Rear Wheel Drive (RWD) and F-450 and F-550 without Low Deflection Package

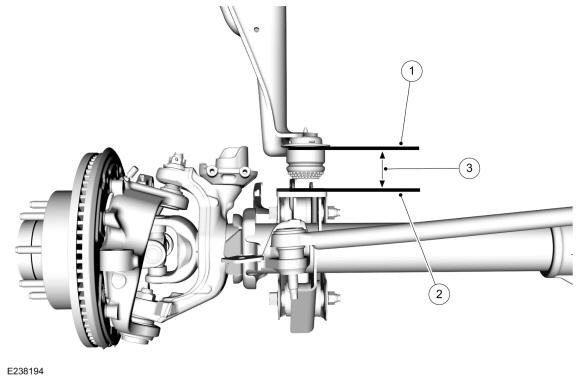

1. Bottom of the jounce bumper at the frame (measurement point 1)
2. Top of axle tube (measurement point 2)
3. Ride height = distance between measurement point 1 and measurement point 2
Courtesy of FORD MOTOR COMPANY
NOTE: F-250 and F-350, Four-Wheel Drive (4WD) and F-450 and F-550 with Low Deflection Package

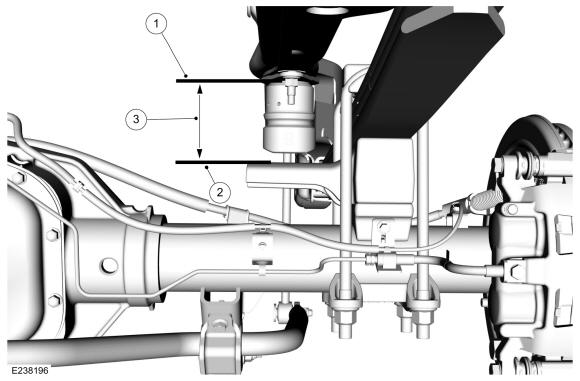

1. Bottom of the jounce bumper at the frame (measurement point 1)
2. Top of spring spacer (measurement point 2)
3. Ride height = distance between measurement point 1 and measurement point 2

Courtesy of FORD MOTOR COMPANY
