Front Toe Adjustment - F-250 F-350, RWD

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Adjustment

Using alignment equipment and the manufacturer's instructions, measure the toe settings.
- Refer to Alignment Specifications in the Specifications portion of this article for optimal alignment settings. Refer to: Front Toe Adjustment - F-250/F-350, RWD .
- If the toe settings are not within specification, go to the next step.

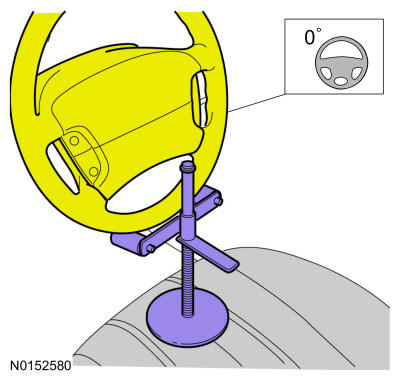

Start the engine and center the steering wheel.
Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY

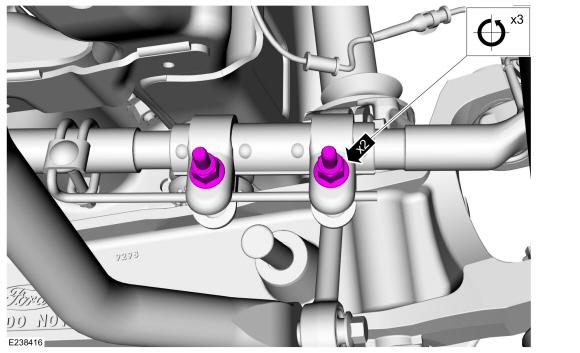

On both sides. Loosen the tie rod adjuster sleeve nuts.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

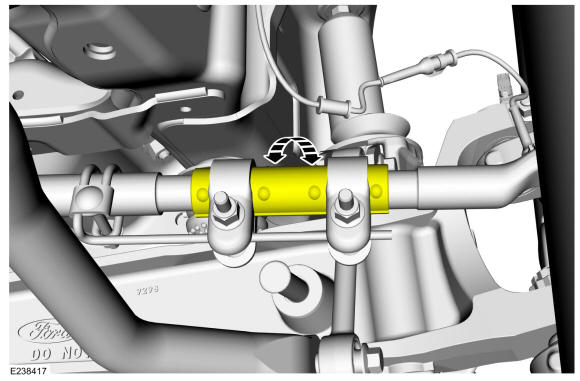

On both sides. Rotate the tie rod adjusting sleeve to obtain the correct toe setting.

Courtesy of FORD MOTOR COMPANY
Verify the toe settings and adjust as necessary.
