Battery Tray: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Battery Tray - Primary

Remove the air cleaner. Refer to: Air Cleaner 6.2L V8 . Refer to: Air Cleaner 6.8L Triton-30V - V10 . Refer to: Air Cleaner 6.7L Power Stroke Diesel .
Remove the primary battery. Refer to: Battery .

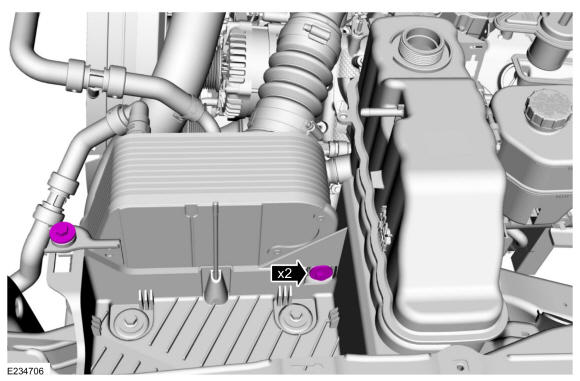

Remove the pushpin, release the retainers and remove the air cleaner upper intake duct.

Courtesy of FORD MOTOR COMPANY

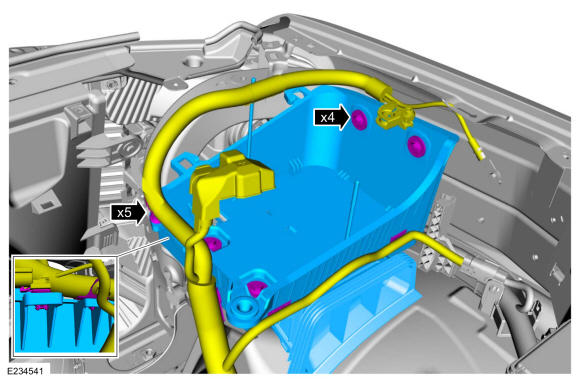

Detach the battery cable retaining clips from the battery tray. Remove the bolts and the battery tray.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

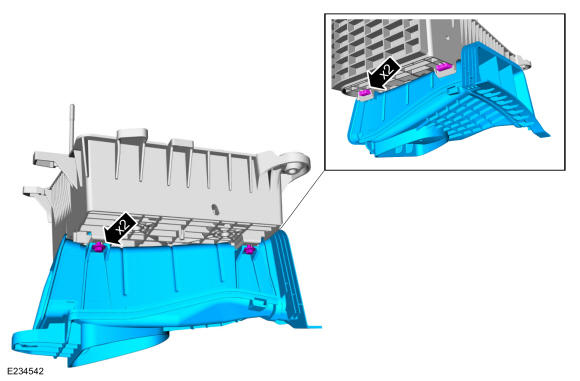

If replacing the battery tray, remove the bolts and the air cleaner lower intake duct.

Courtesy of FORD MOTOR COMPANY

Battery Tray - Secondary

NOTE: 6.7L diesel vehicle show, other vehicles similar.
Remove the secondary battery. Refer to: Battery .

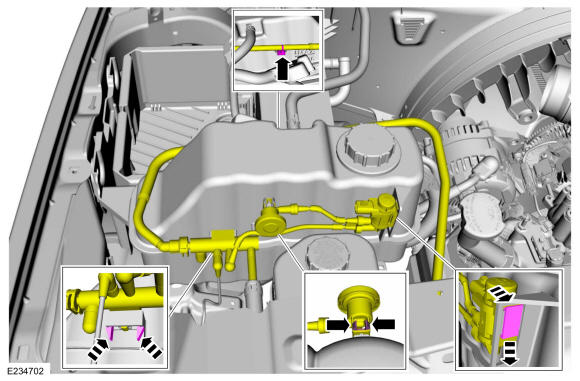

For 4WD vehicles, detach the vacuum lines from the degas bottle.

Courtesy of FORD MOTOR COMPANY

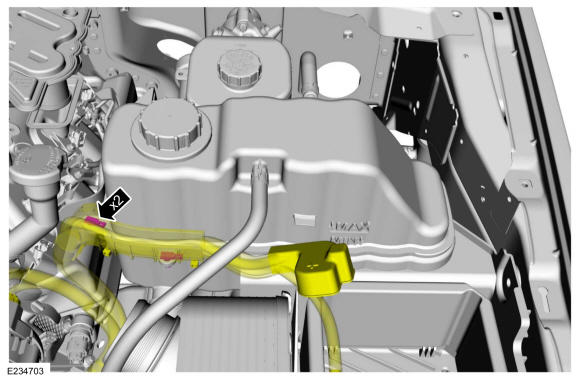

Detach the battery cable from the degas bottle.

Courtesy of FORD MOTOR COMPANY
WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.

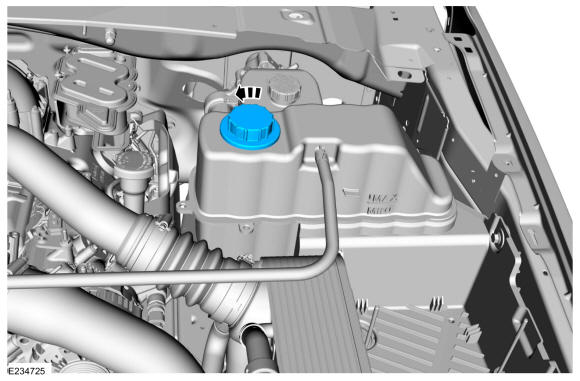

Remove the degas bottle filler cap.

Courtesy of FORD MOTOR COMPANY
NOTE: Charge air cooler pipes not shown for clarity.

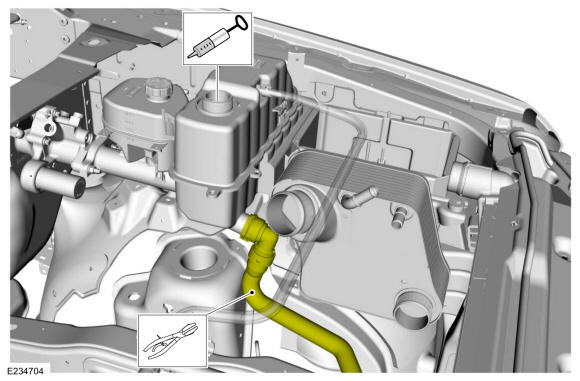

Clamp the lower degas bottle hose and siphon the coolant from the degas bottle. Use the General Equipment: Hose Clamp(s) Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY

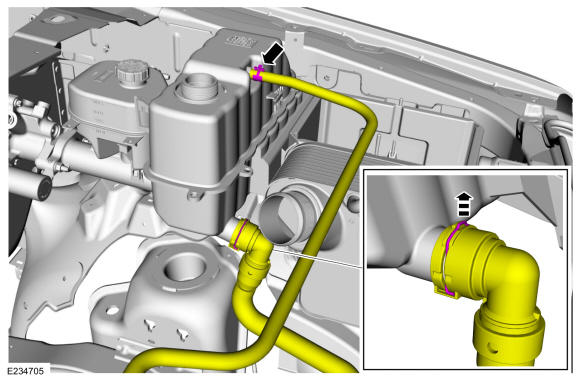

Remove the retaining clip from the lower hose, release the upper hose clamp and detach the coolant hoses from the degas bottle.

Courtesy of FORD MOTOR COMPANY
For 6.7 diesel vehicles, remove the CAC bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

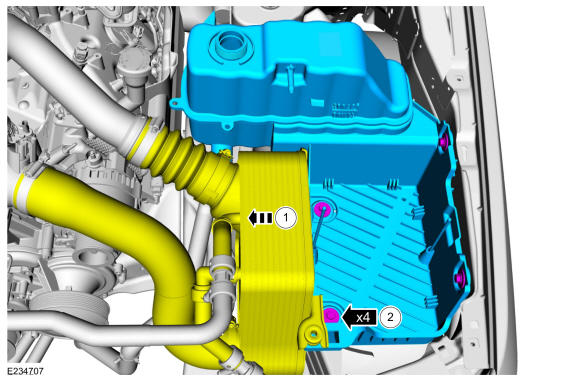

NOTE: For 6.7 diesel vehicles, position the charge air cooler before removing the battery tray.

Remove the bolts and the battery tray.

Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
