Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups - Vehicles With: Single Rear Wheels: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the component is clean and free of foreign material.
1. Clean the hub.
2. Coat the hub with clean axle lubricant.
  Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
Courtesy of FORD MOTOR COMPANY

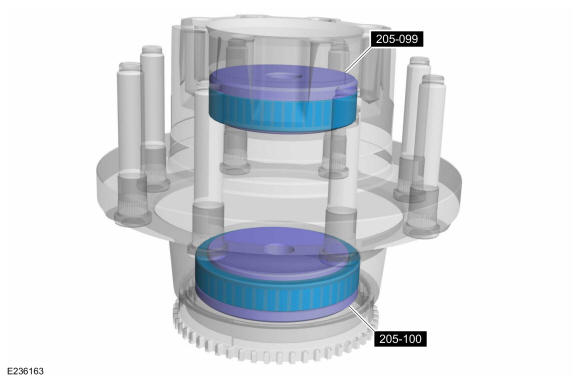

Using the special tools, install the new inner and outer bearing cups. Use Special Service Tool: 205-099 (T75T-1225-A) Installer, Axle Bearing., 205-100 (T75T-1225-B) Installer, Axle Bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
NOTE: The wheel hub bearings must be prelubricated with grease prior to installation. Pack each bearing with a bearing packing tool.

Clean, inspect and pack the inner and outer bearings with grease.

Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY
NOTE: The wheel hub bearings must be prelubricated with grease prior to installation. Pack each bearing with a bearing packing tool. Also apply grease to the thrust surface of the bearing.

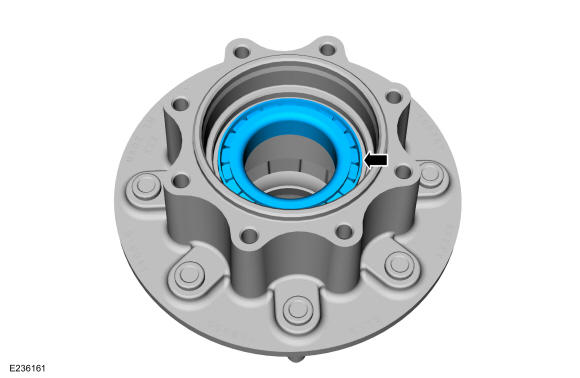

Install the new inner wheel hub bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: The inner wheel hub seal surface should be clean of all foreign material before installation.

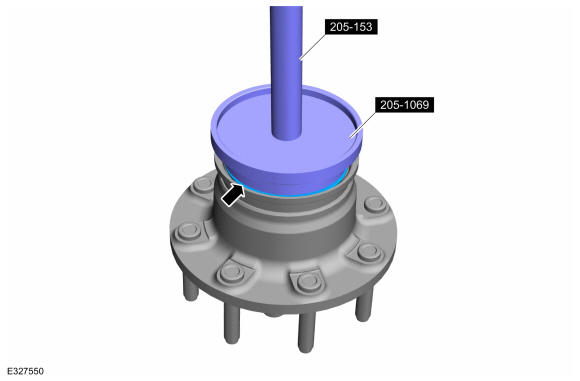

Using the special tools, install the new inner wheel hub seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-1069 Installer, Wheel End Seal - M275_M300HD.

Courtesy of FORD MOTOR COMPANY
Install the wheel hub. Refer to: Wheel Hub .
