Fuel Tank - Vehicles With: Midship Fuel Tank: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Fuel systems will vary in configuration with different wheelbases. Typical application shown.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Drain the fuel tank. Refer to: Fuel Tank Draining .
-
NOTE: Typical configuration shown, others similar

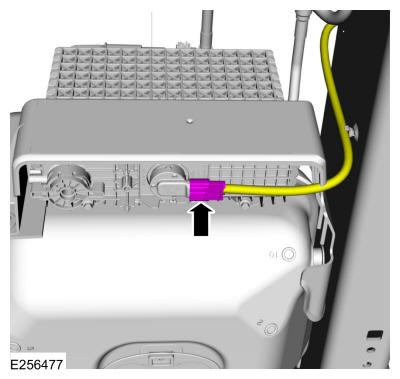

Disconnect the water-in-fuel sensor electrical connector.
-
NOTE: Typical configuration shown, others similar
Disconnect the 2 fuel line quick release couplings. Refer to: QUICK RELEASE COUPLING
-
NOTE: Typical configuration shown, others similar
If equipped.

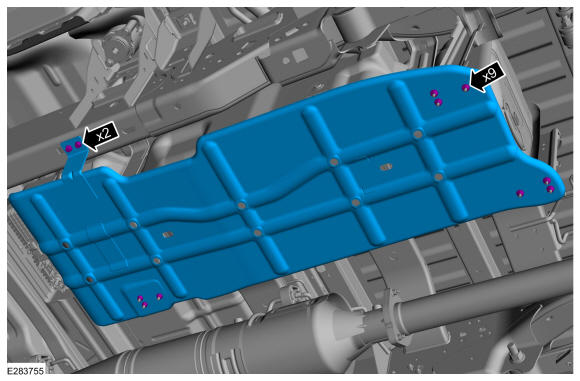

- Remove the bolts.
Torque: 177 lb.in (20 Nm)
- Remove the nuts.
Torque: 177 lb.in (20 Nm)
- Remove the bolts.
-
NOTE: Do not apply open flame to the fuel tank strap bolts, use a magnetic induction tool to heat the fuel tank strap bolts.NOTE: Use an Induction Innovations MD-700 Mini-Ductor II Magnetic Induction Heater Kit or equivalent.NOTE: Adhesive is applied to threads on fuel tank strap bolts during manufacture.
Using a magnetic induction tool, apply heat for 20 seconds to each the fuel tank strap bolt to soften the adhesive, following the tool manufacturer's instructions.
-
NOTE: Typical application shown.NOTE: New bolts must be installed.
Using a suitable lifting and lowering tool, support the fuel tank. Heat the fuel tank strap bolts one at a time using a magnetic induction tool. Remove and discard the fuel tank strap bolts using hand tools. Partially lower the fuel tank for access.
Torque: 30 lb.ft (40 Nm)
-
NOTE: Typical configuration shown, others similar
Disconnect the fuel pump and sender unit electrical connector. Remove the fuel tank.
