Fuel Cooler: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Drain the secondary cooling system. Refer to: ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING

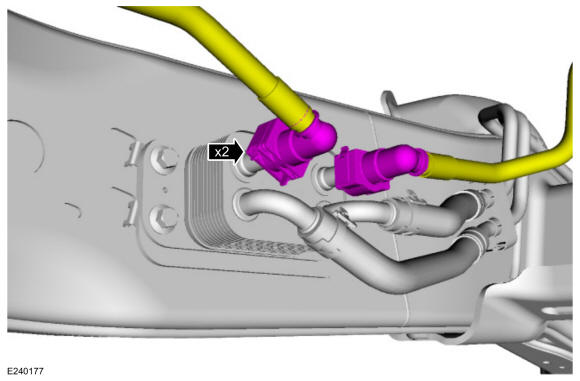

- Disconnect the quick release couplings and position fuel lines aside. Refer to: QUICK RELEASE COUPLING

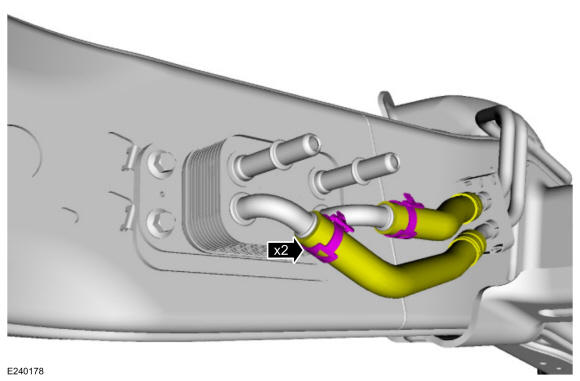

- Release the clamps and position coolant hoses aside.

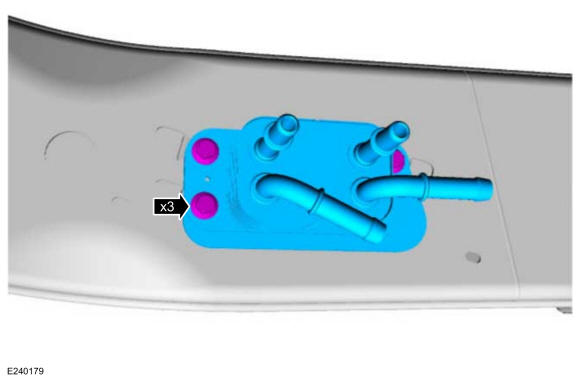

- Remove the bolts and fuel cooler assembly.
Torque: 22 lb.ft (30 Nm)
