Fuel Level Sensor: Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .
-
NOTE: Typical application shown.

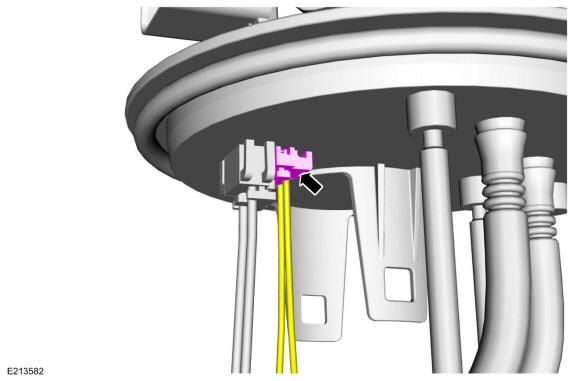

Disconnect the electrical connector.
-
NOTE: Typical application shown.

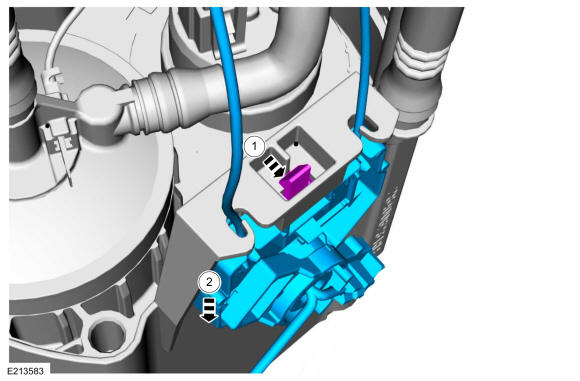

- Release the retainer tab.
- Remove the Fuel Level Sender.
