Front Brake Pads - F-450/F-550: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
-
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

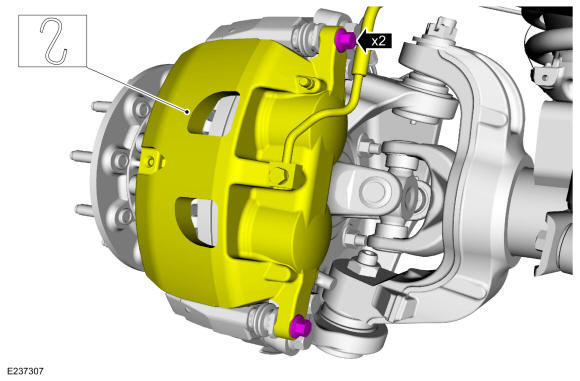

Remove the bolts and position the brake caliper aside.
Torque: 98 lb.ft (133 Nm)

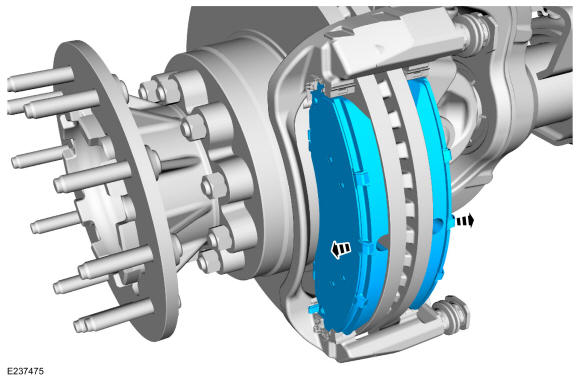

- Remove and the brake pads.

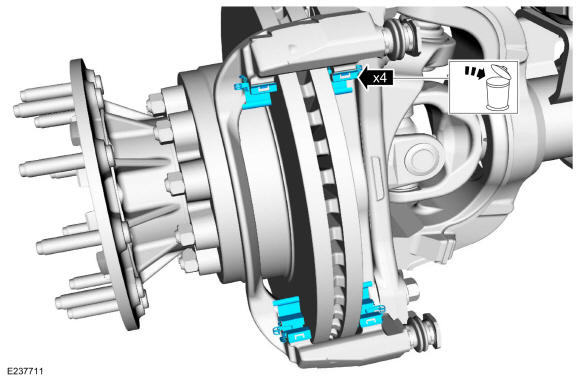

- Remove the brake pad clips. Discard if installing new brake pads.
