Front Brake Pads - F-450/F-550: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.

NOTE: Tighten the bottom caliper bolt before tightening the top caliper bolt and make sure the caliper pin boots are correctly seated or damage to guide pins may occur.

NOTE: If installing new brake pads, install all new hardware as supplied with the brake pad kit.

Courtesy of FORD MOTOR COMPANY

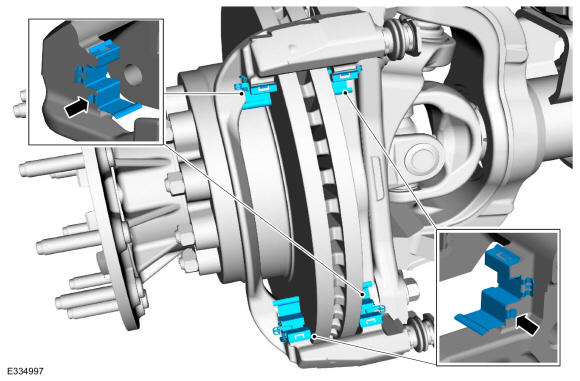

Install the new brake pad clips supplied in the service kit..

Courtesy of FORD MOTOR COMPANY

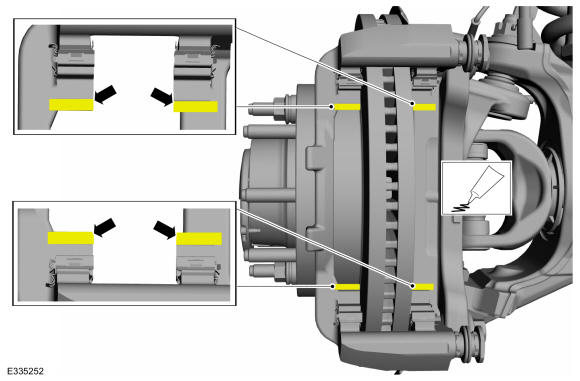

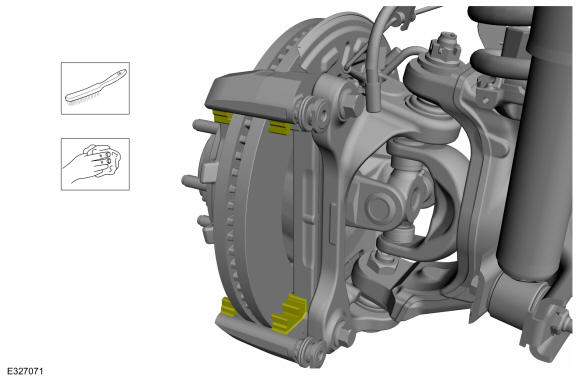

Apply grease supplied with the service kit on all four pad clips surfaces.

Courtesy of FORD MOTOR COMPANY
NOTE: Protect the caliper pistons and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.

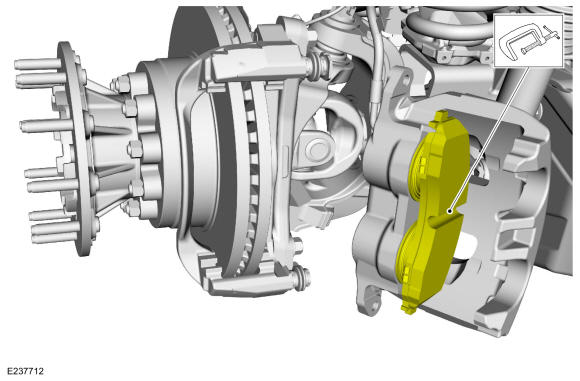

If installing new brake pads. Use a C-clamp and a worn brake pad to compress the disc brake caliper pistons into the brake caliper bore.

Courtesy of FORD MOTOR COMPANY

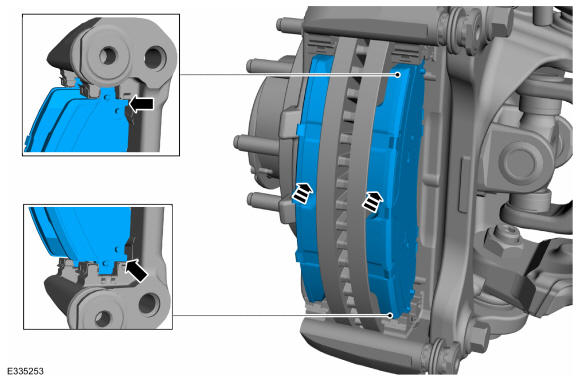

Ensure both the brake pads are installed correctly as shown.

Courtesy of FORD MOTOR COMPANY

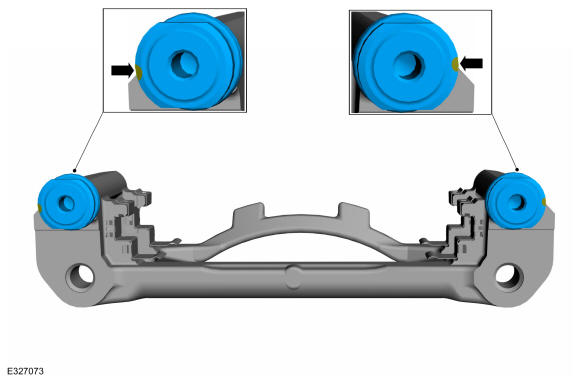

Ensure both the guide pins are positioned with the notches facing away from the housing.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
