Front Brake Pads - F-250/F-350: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

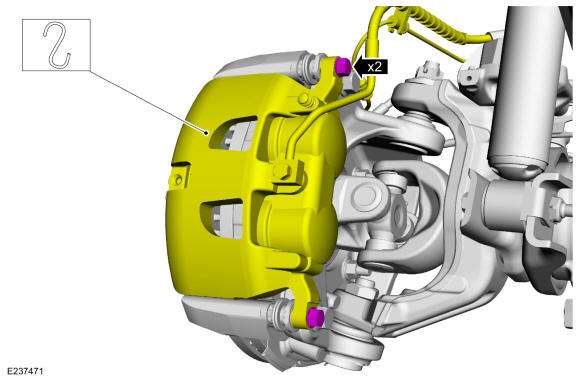

Remove the bolts and position the brake caliper aside.

Torque: 55 lb.ft (74 Nm)

Courtesy of FORD MOTOR COMPANY

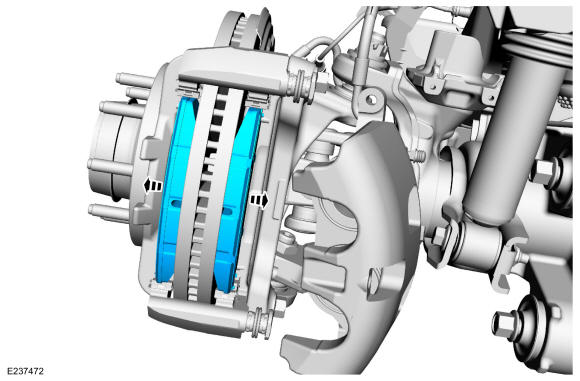

Remove the brake pads.

Courtesy of FORD MOTOR COMPANY

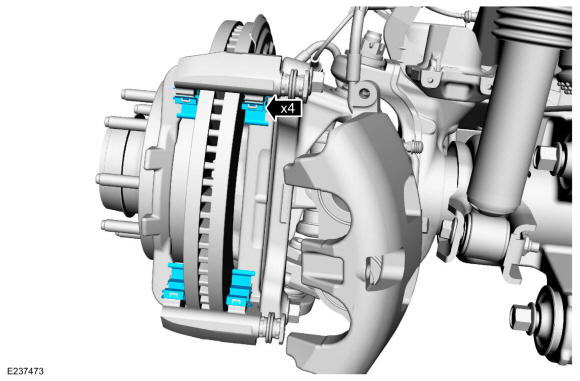

Remove the brake pad clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Protect the caliper pistons and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.

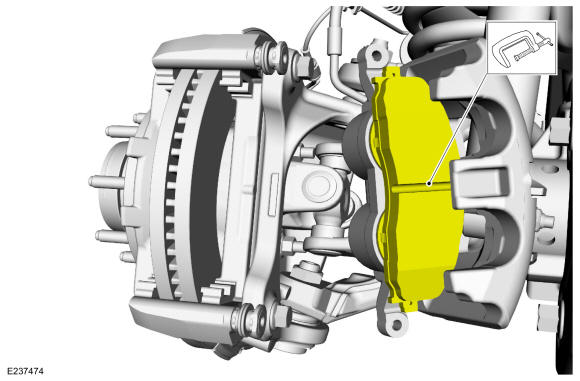

If installing new brake pads. Use a C-clamp and a worn brake pad to compress the disc brake caliper pistons into the brake caliper bore.

Courtesy of FORD MOTOR COMPANY
