Front Brake Caliper Anchor Plate: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
All vehicles
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake pads. Refer to: Brake Pads - F-250/F-350 .
Refer to: Brake Pads - F-450/F-550 .

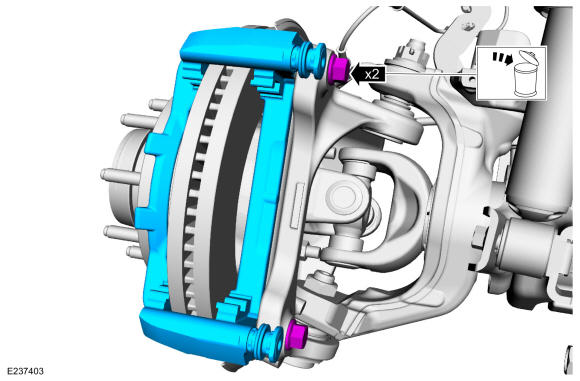

F250, F350
- Remove the bolts and the anchor plate. Discard the bolts
Torque: 203 lb.ft (275 Nm)

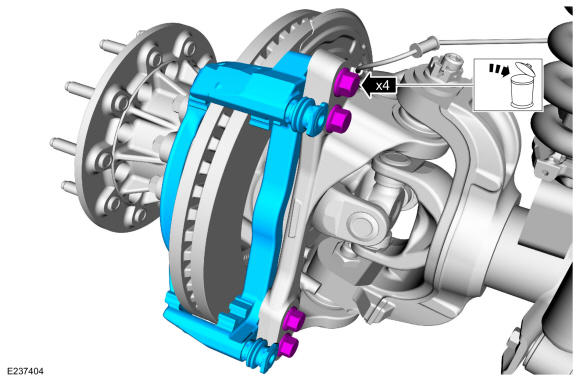

F450, F550
- Remove the bolts and the anchor plate. Discard the bolts
Torque: 166 lb.ft (225 Nm)
