Transmission Support Crossmember: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Support the transmission. Use the General Equipment: Transmission Jack
- If equipped, remove the transfer case skid plate. Refer to: Transfer Case .
- Remove the heat shield bolt, if equipped.
Torque: 18 lb.ft (25 Nm)

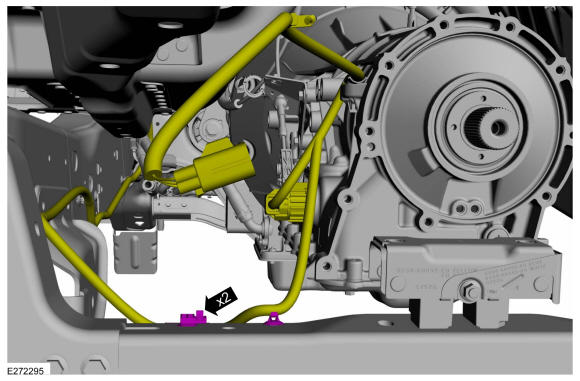

- If equipped. Detach the retainers and position the wiring harness aside.

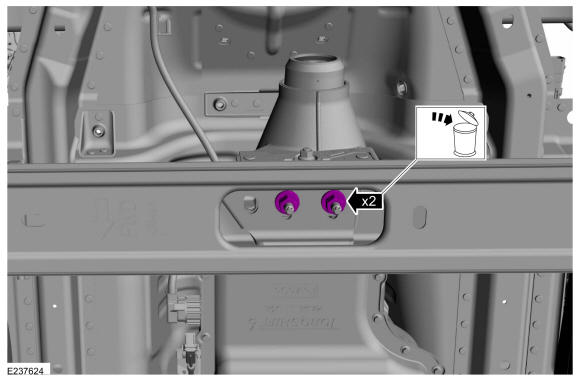

- Remove and discard the transmission mount support isolator nuts.
Torque: 85 lb.ft (115 Nm)

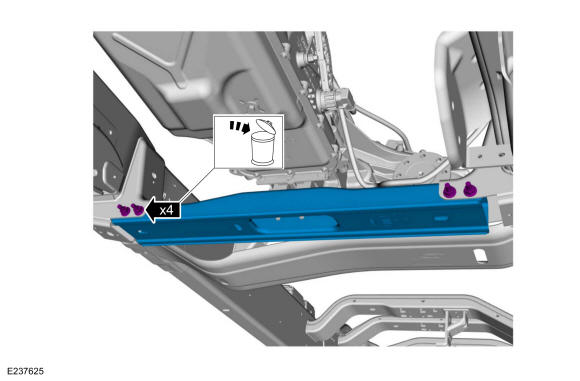

- Remove and discard the crossmember bracket fasteners and remove the crossmember.
Torque: 81 lb.ft (110 Nm)
